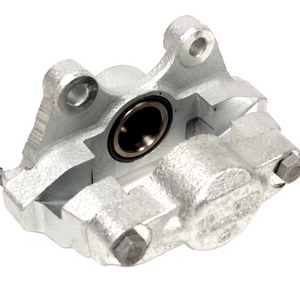

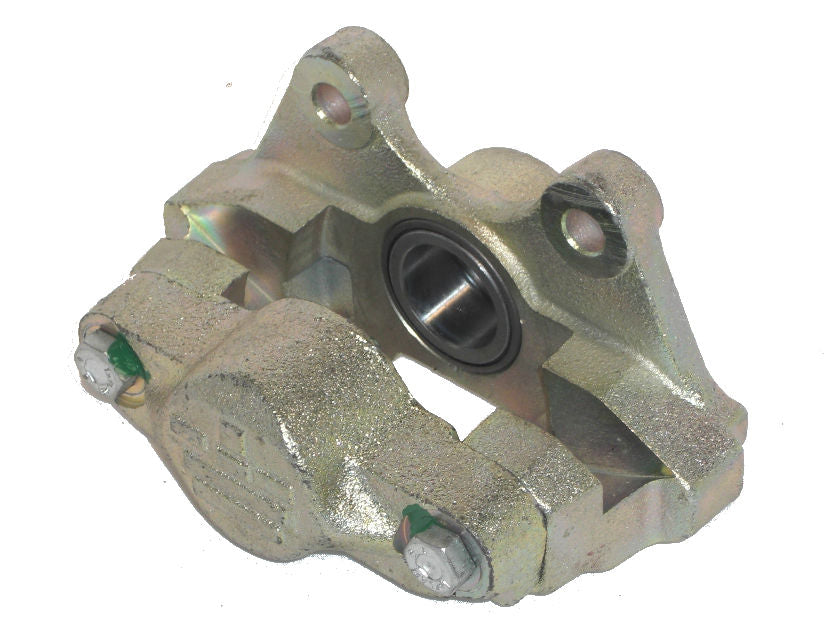

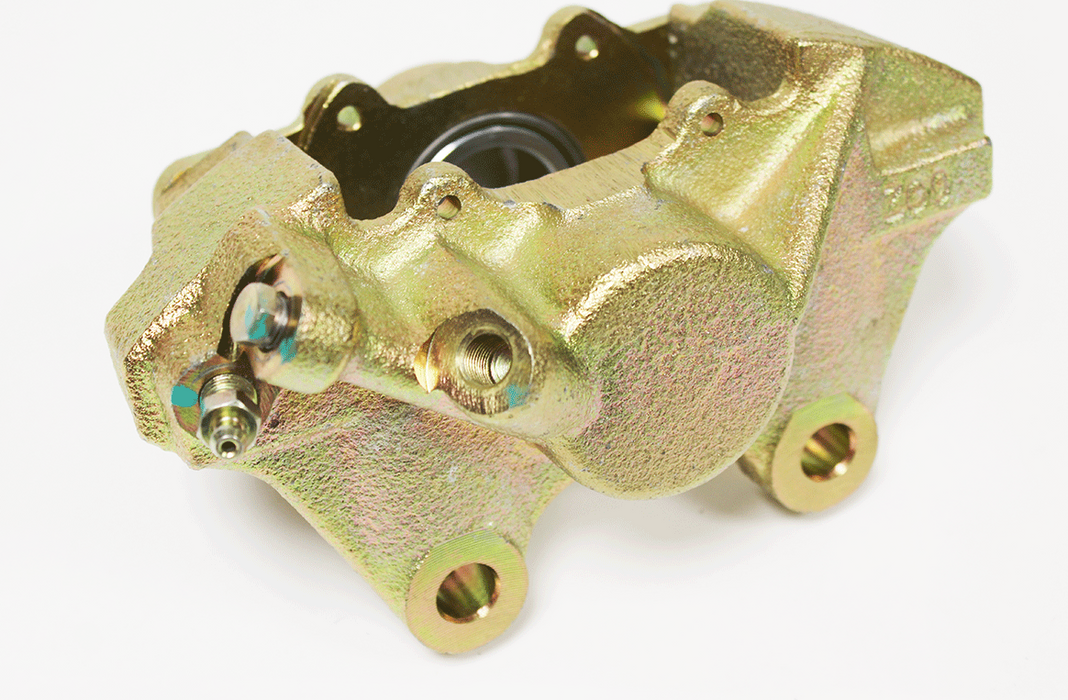

SMC500110 - Brake Caliper – Rear – RH

- €62,60

€62,60

€62,60 - €62,60

€62,60

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Rear Brake Caliper, right-hand side, for the rear braking circuit on models fitted with solid (non-vented) rear discs. The caliper clamps the brake pads against the disc to convert hydraulic pressure into braking force at the right rear wheel.

It bolts to the rear axle and houses the hydraulic piston that drives the pads against the disc under pressure from the brake master cylinder and servo. Right-hand side fitment.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes DEFENDER 90 1983-2006 — RH, Solid Discs
DEFENDER 90 2007-2016 — RH, Solid Discs; from (V)7A000001
DISCOVERY 1 1989-1998 — RH, Non-ABS, Solid Discs; from axle no. 28S44172D and 32S2119B
RANGE ROVER CLASSIC — RH, Solid Discs; from axle no. 34S16422C to 37S08651B

Alternative Codes

STC1264RSMC500110

In stock 2 units

2 · Gouda 0 · Drachten

Express delivery available

4 more on the way · ETA 02-08-2026

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

4 more units on the way — expected 02-08-2026. Orders beyond current stock are reserved from incoming stock and shipped as soon as they arrive.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the STC1264R rear brake caliper do?

The STC1264R is the right-hand rear brake caliper for Land Rovers with solid (non-vented) rear discs. It houses the hydraulic piston that clamps the brake pads against the disc at the right rear wheel. It bolts to the rear axle and works off the master cylinder and servo pressure.

Which Land Rovers does the STC1264R rear caliper fit?

The STC1264R fits the right rear of the Defender 90 (1983-2016, solid discs), Discovery 1 (1989-1998, non-ABS), and Range Rover Classic with solid rear discs. Defender 90 from 2007 applies from VIN 7A000001. It's the right-hand side only, for solid not vented discs.

How is the STC1264R different from the SMC500110 caliper?

The STC1264R is the aftermarket version of the same right-hand rear caliper as the genuine SMC500110, so they interchange for fitment. Both are the right-hand side for solid rear discs. For the left rear you'll need the opposite-hand caliper, not this one.

What are the signs a rear brake caliper needs replacing?

A failing rear caliper typically shows as a sticking brake, uneven pad wear, fluid weeping at the piston seal, or the wheel binding when it should spin free. A seized piston pulls braking unevenly across the axle. These calipers can corrode internally with age on older Land Rovers.
