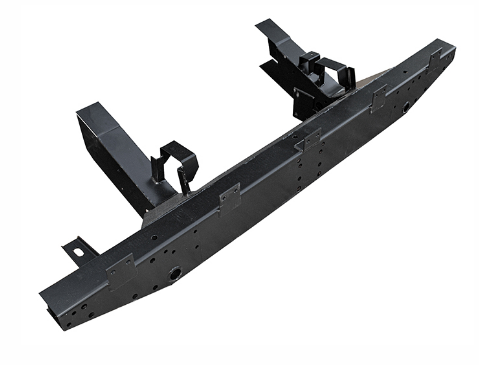

STC8650 - Crossmember – With Extensions by AftermarketBody Part Land Rover Range Rover Defender

STC8650 - Crossmember – With Extensions

- €350,00
€350,00
€350,00 - €350,00
€350,00

Note: This product is heavy and ships on a pallet, which may add to the delivery fee.

Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Rear Crossmember With Extensions for the Defender 90 chassis. The crossmember forms the rearmost structural section of the chassis frame and carries the rear body mountings, towing point and rear suspension loads.

This version is supplied with the side extensions that tie the crossmember into the chassis rails, and is a common replacement section where the original has corroded.
Vehicle Model Land Rover Defender up to 2016
Fitment Notes DEFENDER 90 1983-2006 — Rear chassis crossmember with extensions (replacement outriggers); up to VIN (V)WA159806; supplied without anti-roll bar brackets
Alternative Codes
STC8650CP511DFS697GA4019LR511RTC6292E

On order 2 units · ETA 16-08-2026

Currently out of stock. Order now — we'll ship as soon as it arrives.

When will my order arrive?

We have 2 units on order from our supplier, expected 16-08-2026. Order now to reserve — we'll dispatch as soon as stock arrives.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.

Need it sooner? Contact us about express import (2–5 business days).

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the STC8650 rear crossmember with extensions?
The STC8650 is the rear chassis crossmember with side extensions for the Land Rover Defender 90 (1983-2006). It forms the rearmost structural section of the chassis, carrying the rear body mounts, towing point and rear suspension loads. The extensions tie it into the chassis rails.
Why replace a Defender 90 rear crossmember?
The rear crossmember is a common replacement on the Defender 90 because the original corrodes where it sits low at the back of the chassis and collects road salt and water. The STC8650 comes with the side extensions, letting you renew the whole corroded section in one part.
Does the STC8650 fit all Defender 90 models?
The STC8650 fits the Land Rover Defender 90 (1983-2006) up to VIN (V)WA159806. It's supplied without anti-roll bar brackets, so if your vehicle has a rear anti-roll bar you'll need to transfer or source those separately. Check your VIN against the cut-off before ordering.
Does fitting the STC8650 crossmember need welding?
Fitting the STC8650 is typically a welding job rather than a bolt-on repair. The old corroded section is cut out and the new crossmember with its extension outriggers welded to the chassis rails, so it's usually a workshop task. It's supplied bare, without anti-roll bar brackets.

Alternative & Related Options

Same part, different brands or quality grades. Click any option to view full details.

3 options
LR411 - Rear 1/3 Chassis Not - 90 TD5
Aftermarket LR411 - Rear 1/3 Chassis Not - 90 TD5
Stock 0
€550,00 excl. VAT
View →

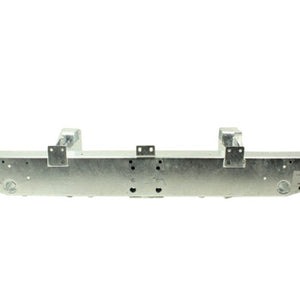

STC8650GAL - Rear Cross Member – With Extensions – Galvanised
Aftermarket STC8650GAL - Rear Cross Member – With Extensions – Galvanised
Stock 0
€400,00 excl. VAT
View →

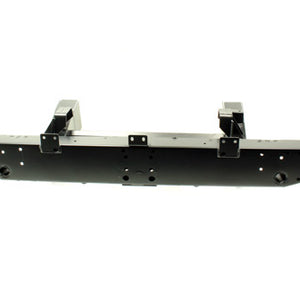

LR711 - Rear Crossmember – 300TDi – With ARB Brackets
