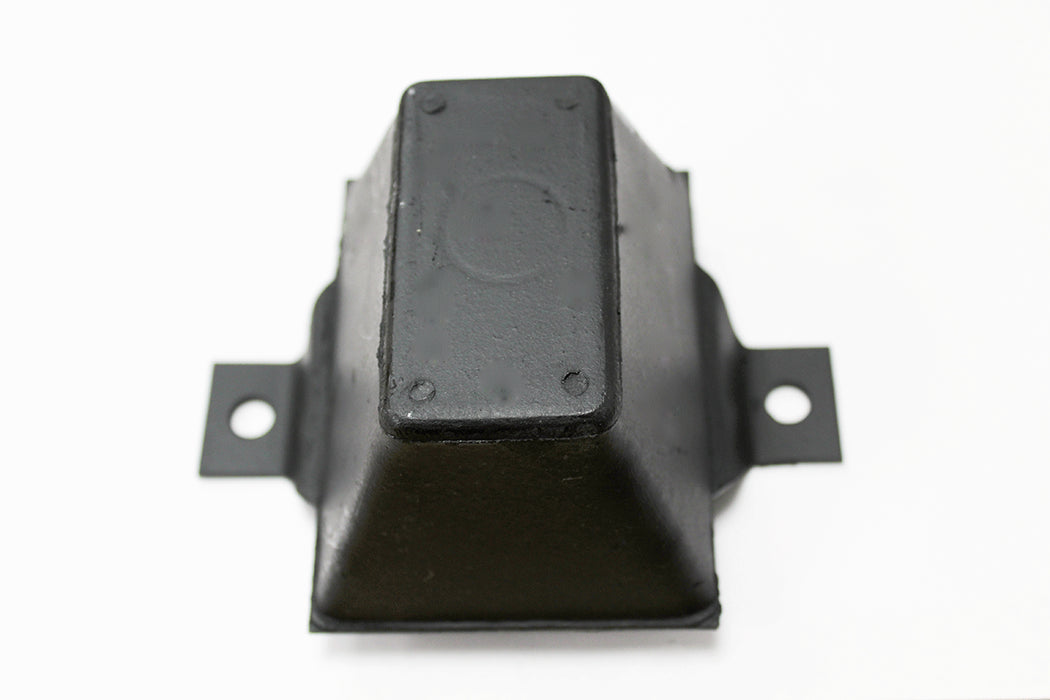

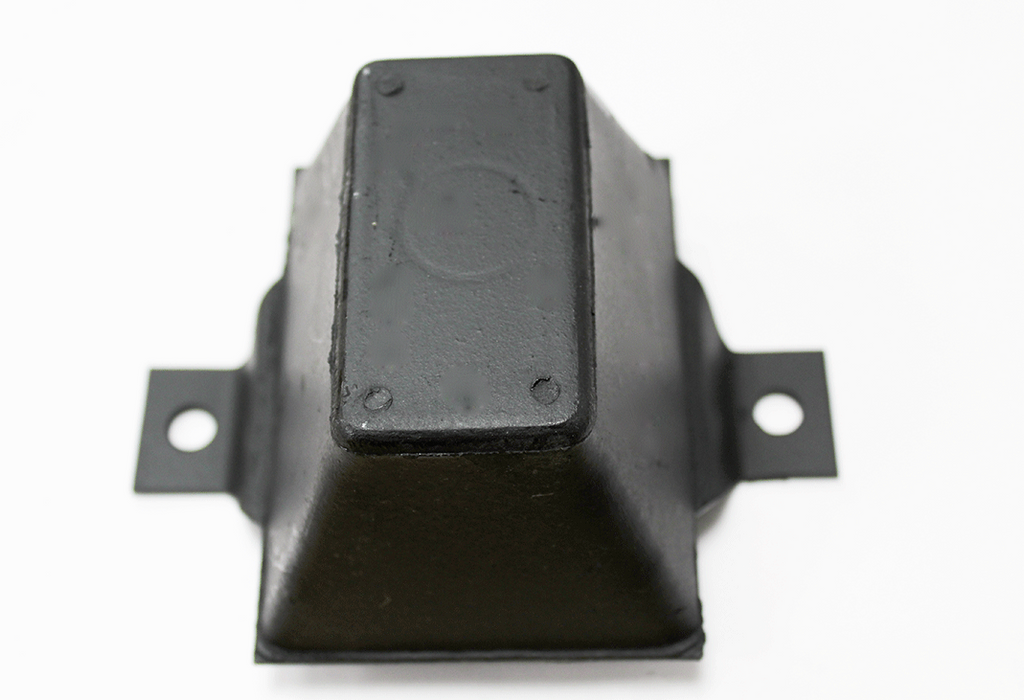

241380 - Axle Bump Stop by AftermarketSteering or Suspension Part Land Rover Range Rover Defender, Series

241380 - As-stootbegrenzer

- €14,70

€14,70

€14,70 - €14,70

€14,70

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Asschokdemper - rubberen stootblok voor de voor- en achterwielophanging.

Gemonteerd aan het chassis boven elke as, beperkt de schokdemper de opwaartse beweging van de as bij maximale ophangingscompressie, waardoor metaal-op-metaal contact tussen hetashuis en de chassisframes wordt voorkomen. Het rubber absorbeert de impactbelasting aan het einde van de veerweg, waardoor zowel de as als het chassis worden beschermd tegen schade veroorzaakt door het doorslaan.

Vehicle Model Land Rover Defender tot 2016
Land Rover Series 1
Land Rover Series 2 en 3

Fitment Notes SERIE I — Axle bump stop, 86" en 88" wielbasis
SERIE II/IIA — Axle bump stop
SERIE III — Axle bump stop
DEFENDER 1983-2006 — Axle bump stop

Alternative Codes

241380BFM 239

In stock 13 units

6 · Gouda 7 · Drachten

Express delivery available

13 more on the way · ETA 29-05-2026

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

13 more units on the way — expected 29-05-2026. Orders beyond current stock are reserved from incoming stock and shipped as soon as they arrive.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the Axle Bump Stop 241380 and what does it do on Land Rover Series and Defender?

The Axle Bump Stop (241380) is a rubber buffer fitted to the chassis above each axle on Land Rover Series 1, Series 2, Series 3, and Defender up to 2006. It limits axle upward travel at maximum suspension compression, preventing metal-to-metal contact between the axle housing and chassis rails and absorbing the impact load when the suspension bottoms out.

How many axle bump stops does a Land Rover Series or Defender have?

These vehicles typically have one bump stop per axle, mounted to the chassis frame above the axle centre. A full set is usually two — one for the front axle and one for the rear. Inspect both when replacing one, as they age and harden at the same rate.

When should axle bump stops be replaced on a Series or Defender?

Replace when the rubber shows cracking, hardening, or permanent compression set. A failed bump stop allows the axle housing to contact the chassis at full suspension compression, risking damage to both components. Check bump stops during suspension service or after heavy off-road use.

What part numbers reference Axle Bump Stop 241380?

The Land Rover part number is 241380, listed by BritPart as 241380 and AllMakes as 241380. The alternative reference is BFM 239.
