563195 - Injector Bolt

- €30,10

€30,10

€30,10 - €30,10

€30,10

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

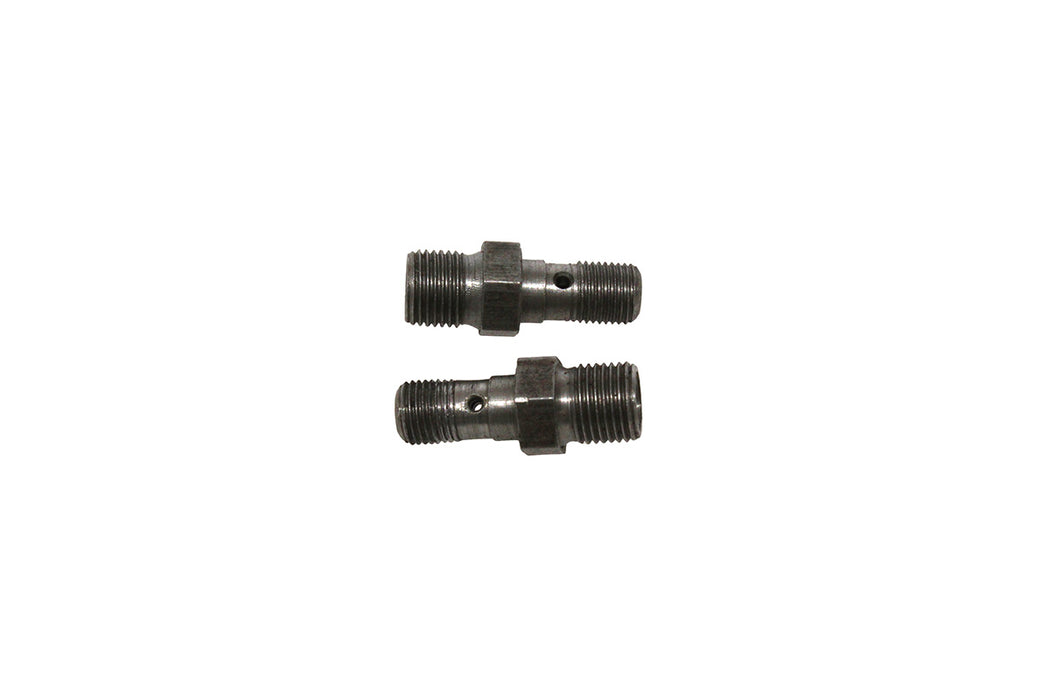

Injector Bolt - the banjo bolt at the injector spill-return (leak-off) union.

It clamps the leak-off pipe fitting to the top of the injector, its drilled shank passing surplus fuel from the injector body into the spill-return line that carries it back to the tank.

Vehicle Model Land Rover Defender up to 2016
Land Rover Series 2 and 3

Fitment Notes SERIES II/IIA/III — 2.25L Diesel, injector banjo bolt (spill return union)
DEFENDER 1986-2006 — 2.5L NA Diesel, injector banjo bolt (spill return union)

Alternative Codes

563195

In stock 14 units

10 · Gouda 4 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the Injector Bolt used for?

The Injector Bolt is the banjo bolt at the injector spill-return (leak-off) union. It clamps the leak-off pipe fitting to the top of the injector, and its drilled shank passes surplus fuel back into the spill-return line. Fits Land Rover Series 2/3 2.25L diesel and Defender 2.5L naturally aspirated diesel.

How many injector bolts are needed for a leak-off pipe repair?

Usually one injector banjo bolt is needed per injector on the spill-return line, so a full set uses one at each. These sit on sealing washers that are typically single-use, so fit fresh washers whenever the union is disturbed to stop fuel weeping.

Which diesel engines does this injector bolt fit?

This injector banjo bolt fits the spill-return union on Land Rover Series 2/3 with the 2.25L diesel and Defender (1986-2006) with the 2.5L naturally aspirated diesel. Confirm your engine type before ordering, as diesel fuel unions vary between engines.
