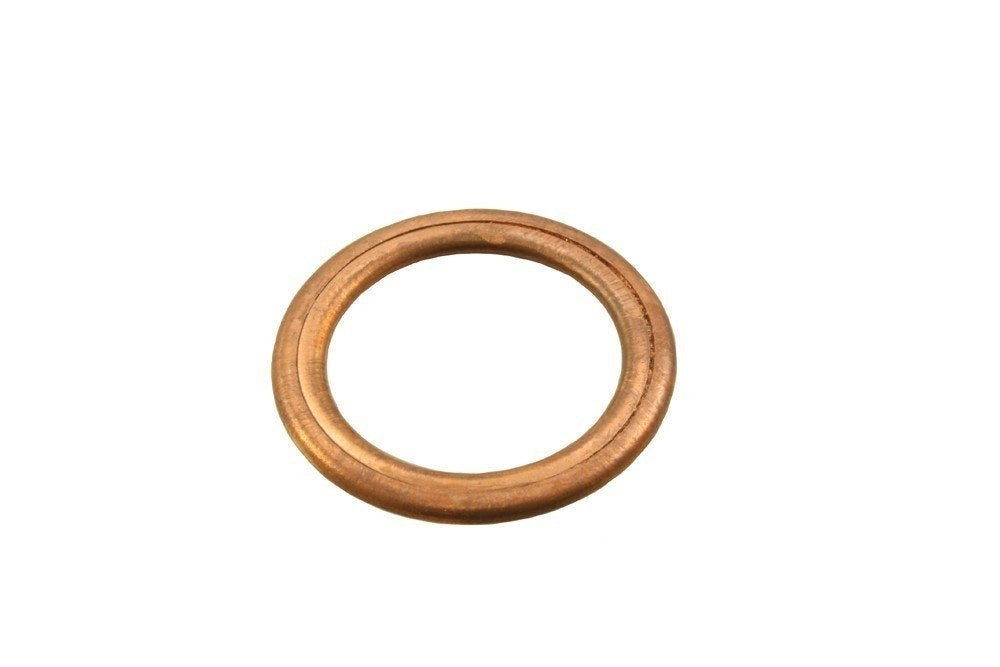

FRC7064 - Copper joint washer ring Transmission or Gearbox Part Land Rover Range Rover Defender, Discovery, Range Rover

FRC7064 - Drain Plug Washer – Gearbox – Copper

- €1,70

€1,70

€1,70 - €1,70

€1,70

Tip: Log in to your account to unlock volume discounts on this item.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Drain Plug Washer is the copper sealing washer for the drain plug on the LT77 manual gearbox.

It seats between the magnetic drain plug and the gearbox casing to seal the drain aperture and prevent oil leakage. As a copper crush washer, it deforms when the plug is tightened to form the seal and should be renewed each time the plug is removed.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes RANGE ROVER CLASSIC 1986-1991 — LT77 manual gearbox, transmission drain plug sealing washer (to VIN HA610293)

Alternative Codes

FRC7064

In stock 11 units

6 · Gouda 5 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the FRC7064 drain plug washer do?

The FRC7064 is a copper sealing washer for the drain plug on the LT77 manual gearbox. It seats between the magnetic drain plug and the gearbox casing, sealing the drain hole so gearbox oil can't leak out once the plug is tightened.

Can the copper drain plug washer be reused?

No, this copper drain plug washer is a crush washer, so it's best renewed every time the drain plug is removed. It deforms as the plug is tightened to form the seal, and a reused washer often won't seal properly and can weep oil. Fit a fresh one whenever you drop the gearbox oil.

Which gearbox and vehicles use this washer?

This washer suits the LT77 manual gearbox drain plug. On the Range Rover Classic it's listed for 1986 to 1991, up to VIN HA610293. The LT77 was also fitted to other Land Rovers of the period, so confirm you have the LT77 gearbox and check your VIN before ordering.
