BE 0890 - Voltage Regulator – Screw Terminals

Sold out
Original price €46,50 - Original price €46,50
Original price
€46,50
€46,50 - €46,50
Current price €46,50
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

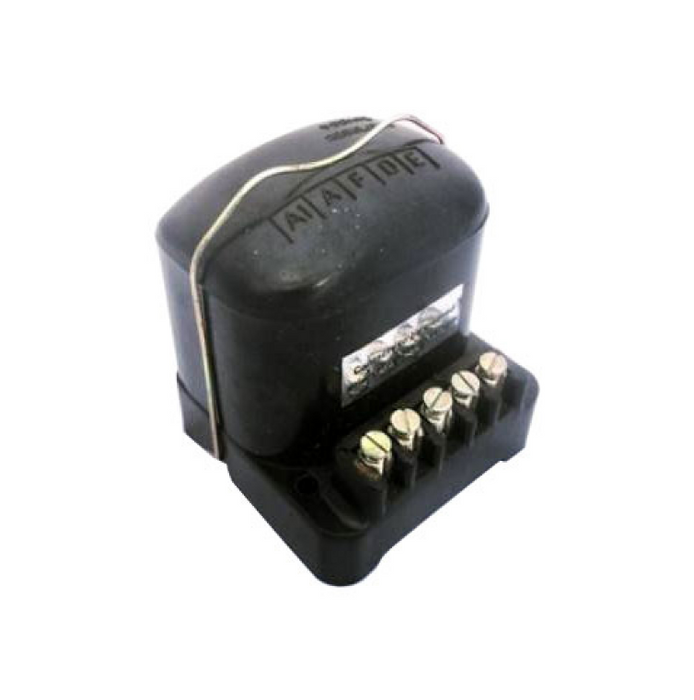

Voltage Regulator (control box) of the screw-terminal type, for dynamo charging systems.

The control box is wired between the dynamo and the battery. It regulates the dynamo output as engine speed varies so that charging voltage stays within limits, and its cut-out relay disconnects the dynamo from the battery at low engine speed to stop the battery discharging back through the dynamo windings.

Cable connections are made to screw terminals. This unit is part of a dynamo charging system and is not interchangeable with an alternator installation.
Vehicle Model Land Rover Defender up to 2016
Land Rover Series 1
Land Rover Series 2 and 3
Fitment Notes Regulator Box Series 1 and Early 2A
Alternative Codes
RTC434BE 0890372903H1835

Not available

This item is currently unavailable. Contact us for alternatives.


Notify me when back in stock

Rather wait until it is in stock? Leave your email address and we will email you the moment it arrives. No newsletter.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the RTC434 voltage regulator?
The RTC434 is a voltage regulator (control box) with screw terminals, used in the dynamo charging system on early Land Rover Series models. It regulates the dynamo's output to keep the battery charged without overcharging.
Which vehicles use the RTC434 regulator box?
The RTC434 suits the Series 1 and early Series 2A fitted with the screw-terminal regulator box. It's for the dynamo (not alternator) charging setup on these early models, so confirm your vehicle still runs a dynamo and control box.
How do I know if I need the screw-terminal type?
Check your existing regulator box terminals. The RTC434 uses screw terminals, matching early Series 1 and 2A control boxes. Later regulators and alternator-equipped cars use different connections, so compare the terminal style before ordering to be sure it fits.
