Land Rover Gearbox & Transferbox Parts

Gearbox Cover Plate Gasket for the LT76 gearbox. This rubber gasket seals the cover plate to the gearbox casing, sealing the joint against oil lea...

Reverse Gear for the LT76 four-speed gearbox, Suffix A only. The reverse idler gear is brought into mesh when reverse is selected, reversing the di...

Bolt - 5/16 inch BSF x 1 inch for the gearbox selector assembly. Used to secure the gear selector forks to their respective selector shafts within...

Gearbox Oil Seal for the extension case of the LT77 five-speed manual gearbox, sealing the mainshaft output collar. The seal runs on the collar at...

Reverse Shaft for the reverse gear train in the Series-type manual gearbox (LT76), suffix B onwards. The shaft carries the reverse idler gear, whi...

Gearchange Housing Gasket for the LT85 five-speed manual gearbox. This gasket seals the interface between the gearchange housing and the main gear...

Transfer Box Flange (Front) is the front output driving flange of the LT230 transfer box - the splined flange onto which the front propshaft bolts....

Stud securing the transfer box to the LT76 gearbox. Threaded stud at the transfer box-to-gearbox mating face, clamping the two housings together a...

Bolt securing the gearbox to the transfer box in the drivetrain. This fixing clamps the main gearbox housing to the transfer box. It applies to th...

Layshaft for the Series Land Rover gearbox. The layshaft (countershaft) runs parallel to the mainshaft inside the gearbox casing. It is driven con...

Spring Washer - 6mm for use across gearbox, clutch and general fastening applications. A helical split spring washer for M6 fasteners, providing r...

Flange & Seal Kit for the front output of the LT230 transfer box, fitted to the Defender 90/110 (to 1998), Range Rover Classic (to 1991), and D...

Thrust Washer is a 1.25mm selective thrust washer for the centre differential of the LT230 transfer box. It sets the end-float of the centre diffe...

Diff Lock Lever Arm for the LT230 transfer box differential lock linkage assembly. This lever forms part of the mechanical actuation system that e...

Release Bearing Guide for the clutch assembly on TD5 engine applications with the R380 5-speed manual gearbox. The release bearing guide (also kno...

Centre Plate Gasket for the LT77 5-speed manual gearbox. This gasket seals the joint between the main casing sections of the LT77 gearbox, prevent...

Automatic Transmission Shaft is a coupling shaft within the ZF 4-speed automatic gearbox assembly. This shaft transmits drive between internal gea...

Breather Tube for the LT230 transfer box. This tube forms part of the breather system on the LT230 transfer gearbox, routing pressure venting away...

O-Ring seals the intermediate shaft in the LT230 transfer box, sitting between the shaft mounting and the transfer casing to hold the oil seal at t...

Transmission Oil Cooler for the transmission cooling circuit on V8 Petrol applications. The cooler regulates automatic or manual transmission flui...

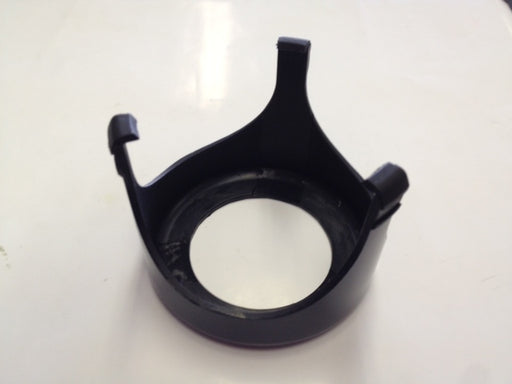

Retaining Clip for the output shaft oil seal on the MT82 6-speed manual gearbox fitted to the Defender from VIN 7A000001 (2007 onwards). This clip...

Primary Pinion for the LT76 manual gearbox, suffix D onwards. The primary pinion is the gearbox input gear, taking drive from the clutch and passin...

Transmission Oil Pan & Filter Kit - the lower fluid pan for the ZF 8HP70 8-speed automatic transmission, incorporating an integrated fluid filt...

Flange Bolt is the special bolt that secures the rear output flange within the manual gearbox output assembly. It clamps the output flange to the ...

Synchro Hub is part of the synchromesh assembly in the LT76 gearbox, splined to the mainshaft and carrying the sliding sleeve that engages the gear...

Front flange LT230

Gasket

Distance bush mainshaft

Synchro Hub for the 3rd/4th gear synchroniser assembly in the Series-type manual gearbox (LT76). The hub carries the synchroniser mechanism that m...

Layshaft Bearing for the early-type LT76 gearbox. It supports the layshaft (countershaft) within the gearbox, carrying the cluster gear that trans...

Mainshaft Bearing for the gearbox mainshaft - the centre bearing that supports the mainshaft within the gearbox casing. It locates and carries the...

Gear Selector Linkage Bush in the floor gear-change assembly of the ZF 6HP26 / 6HP28 6-speed automatic transmission. The bush forms the pivot at t...

Spring Washer used in the floor-mounted gear change assembly of the ZF 6-speed automatic transmission. It is fitted under the fastener securing th...

Valve Body Gasket for the 5L40E five-speed automatic transmission main control assembly. It seals the joint between the valve body and the transmi...

Corner Fixing Plate - pressed retaining plate for the automatic transmission sump pan, corner position. The sump pan on the ZF four-speed automati...

Straight Fixing Plate - pressed retaining plate for the automatic transmission sump pan, straight (side) position. The sump pan on the ZF four-spe...

O-Ring seal for the automatic transmission oil cooler circuit (ZF 8-speed, 8HP). The O-ring seals a connection in the transmission fluid cooling c...

Gear Selector Lever - lever that clamps to the manual selector shaft on the six-speed ZF automatic transmission, forming the gearbox end of the flo...

Oil Cooler Hose for the engine oil cooling circuit on the V8 engine. Forms part of the hose assembly linking the engine oil cooler to the oil circ...

Transmission Drain Plug for the automatic transmission. Seals the fluid drain point on the AWF21 6-speed automatic transmission. Removed to drain ...

Circlip for the manual transmission gearbox, used in the gear-selector detent mechanism. It retains the detent spring and plunger that hold the se...

Gearbox Bearing Kit - a bearing overhaul set for the LT77 five-speed manual gearbox, covering the early gearbox-number suffix A-E variants. It sup...

Sealing Ring - Input Shaft is an O-ring seal fitted to the input shaft of the M66 six-speed manual transmission. It seals the joint where the inpu...

Oil Strainer for the LT77 and R380 five-speed manual gearboxes, located in the rear extension case. Filters the gearbox oil drawn by the internal ...

Powertrain Mount Insulator locating the transmission/powertrain mounting bracket. The rubber-to-metal insulator supports the powertrain against th...

Transmission Oil Cooler in the automatic gearbox cooling circuit. Automatic transmission fluid is routed out of the gearbox and through the cooler...

Transmission Shaft Sleeve for the AWF21 six-speed automatic transmission on all-wheel-drive applications. The sleeve houses and locates the transm...
