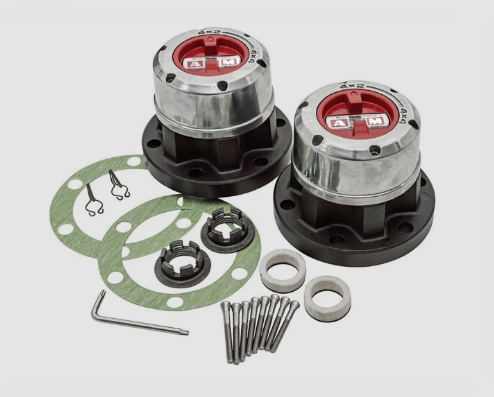

DA4542 - Free Wheeling Hub Kit - 24 Spline - Series by AMVSteering or Suspension Part Land Rover Range Rover Series

DA4542 - Vrijloopnaafset - 24 Spline - Series

- €290,00

€290,00

€290,00 - €290,00

€290,00

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand AMV

Optimaliseer de prestaties van uw Land Rover met deze set van 2 AVM 24-spline vrijloopnaven, speciaal ontworpen voor Land Rover Series 2 en Series 3. Deze handmatig vergrendelbare naven bieden een kosteneffectieve oplossing om slijtage aan de vooras te verminderen wanneer vierwielaandrijving niet nodig is, waardoor het brandstofverbruik wordt verbeterd en de levensduur van de aandrijflijn wordt verlengd.

Vehicle Model Land Rover Series 2 en 3

Fitment Notes Montagegegevens beperkt – gebaseerd op online onderzoek, verifieer indien onzeker
LAND ROVER SERIES — AVM vrijloopnaafset, 24-spline vooras. Fabrieksafmontage Series III (vanaf 1980); achteraf monteerbaar op eerdere Series IIA. Verbindt/ontkoppelt de vooraandrijving bij deel-tijd 4WD

Alternative Codes

RTC8163GA4542DA4542BR 1273FWH1002GLR122RTC8022

In stock 1 unit

1 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the RTC8163 free wheeling hub kit do?

The RTC8163 free wheeling hub kit replaces the standard front driving flanges with manually locking hubs on a 24 spline front axle. Set to free, the front axle shafts, differential and propshaft stop turning when four wheel drive isn't in use. Set to lock, drive returns to the wheel.

Which Land Rovers does this 24 spline hub kit fit?

This kit fits Land Rover Series models with a 24 spline front axle, factory fitment from Series III in 1980 onward, and it can be retrofitted to earlier Series IIA vehicles. Count the splines on your front axle shaft before ordering, as 10 and 24 spline axles both exist.

How many hubs come in the kit?

The kit is supplied as a pair, one hub per front wheel. Both hubs must be set to the same position before four wheel drive is selected, otherwise drive goes to one front wheel only and the axle is loaded unevenly.

Why fit free wheeling hubs to a Series Land Rover?

Free wheeling hubs remove the drag of turning the front axle shafts, differential and propshaft during normal road use, which cuts rotating wear on those components. On a part time four wheel drive Series Land Rover the front driveline turns constantly with fixed flanges.

Can free wheeling hubs be fitted at home?

Fitting free wheeling hubs is typically a home job with hand tools. The standard driving flange comes off the front stub axle and the hub goes on in its place. Corroded flange studs and old gasket residue are the usual holdups on a Series Land Rover.
