GA1400 - Heated Windscreen Wiring Kit – Front

- €250,00

€250,00

€250,00 - €250,00

€250,00

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

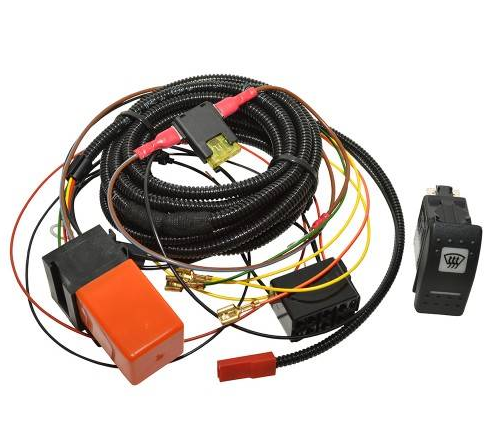

Heated Windscreen Wiring Kit wires a heated front windscreen into the vehicle's electrical system, delivering switched, time-limited power to a screen fitted with two connection tabs, one in each corner.

The kit includes a Carling Contura switch (requires mounting) and a 20A relay circuit with an automatic run time of approximately 10 minutes. Cabling is supplied pre-terminated: a 500mm power cable from the relay to the battery with M8 ring terminals, a 3000mm supply cable from the relay to the screen with an insulated female spade, and a 500mm earth cable with a female spade and M8 ring terminal.

Installation requires only positive and negative power, an ignition live and an illumination live feed. Intended for use with the companion heated screen LR058447.

Vehicle Model Land Rover Defender up to 2016

Alternative Codes

DA1400GA1400

In stock 1 unit

1 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the DA1400 heated windscreen wiring kit do?

The DA1400 kit wires a heated front windscreen into the Defender's electrical system, delivering switched, time-limited power to a screen with two corner connection tabs. It runs for roughly 10 minutes per press via a 20A relay before cutting off automatically.

What's included in the kit?

The kit includes a Carling Contura switch and a 20A relay circuit with pre-terminated power, supply and earth cabling. The switch needs mounting. It's designed for a heated front windscreen that has two connection tabs, one in each corner.

What electrical feeds does fitting need?

Fitting needs a positive and negative supply, an ignition live and an illumination live feed. It's a wiring job suited to someone comfortable with auto electrics; the relay handles the timed cut-off automatically.

Which vehicle does the kit fit?

It fits the Land Rover Defender up to 2016. It pairs with a heated front windscreen that has two connection tabs, one in each corner, so confirm your screen type before ordering.
