243302 - Wheel cylinder RH SWB rear by AllmakesBrake Part Land Rover Range Rover Series

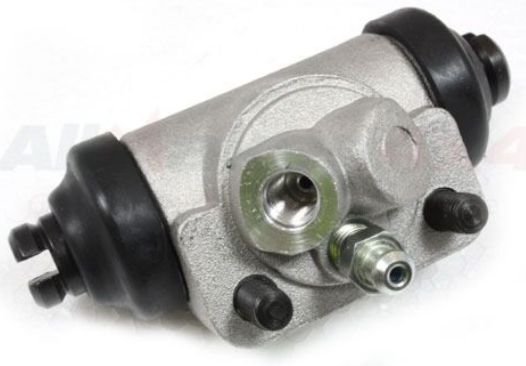

243302 - Wheel Cylinder – SWB Rear – RH

- €16,80

€16,80

€16,80 - €16,80

€16,80

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Wheel Cylinder for the rear drum brake assembly, right-hand side.

The wheel cylinder forms part of the hydraulic drum brake circuit, converting hydraulic pressure delivered from the master cylinder into the mechanical force that pushes the brake shoes outward against the drum. It mounts to the rear backplate in the right-hand position.

The matching left-hand cylinder is part number 243303.

Vehicle Model Land Rover Series 1
Land Rover Series 2 and 3

Fitment Notes SERIES I/II/IIA/III — Wheel (slave) cylinder, RH, rear. SWB (88in), approx 1954-1984

Alternative Codes

243302R243302BR 1098GWC1308LW30014

In stock 14 units

11 · Gouda 3 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the rear wheel cylinder do on a Series Land Rover?

The rear wheel cylinder is the hydraulic slave cylinder in the rear drum brake. It converts brake-line pressure into the force that pushes the brake shoes against the drum. On Series I, II, IIA and III short-wheelbase (88in) models it mounts to the rear backplate, right-hand side.

How many rear wheel cylinders do I need for a brake rebuild?

Each rear drum brake uses one wheel cylinder, so a SWB rear axle needs two: one right-hand and one left-hand. This is the right-hand rear cylinder. The left-hand side uses a separate cylinder, so order one of each if you're rebuilding both rear wheels.

Why do Series wheel cylinders fail, and what are the signs?

Wheel cylinders typically fail when the internal seals perish or the bore corrodes, letting fluid weep past the piston. Signs include a soft or sinking pedal, fluid on the backplate or drum, and uneven braking. A leak usually contaminates the shoes, so replace soaked shoes alongside the cylinder.

Which Series models does this rear cylinder fit?

This rear wheel cylinder fits Land Rover Series I, II, IIA and III short-wheelbase (88in) models, roughly 1954 to 1984. It's the right-hand rear position. Long-wheelbase and front brake applications differ, so confirm your wheelbase and side before ordering.
