243297 - Wheel brake cylinder LH front and rear by EurospareBrake Part Land Rover Range Rover Defender, Series

243297 - Wheel Cylinder – LH – Front/Rear

- €18,80

€18,80

€18,80 - €18,80

€18,80

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

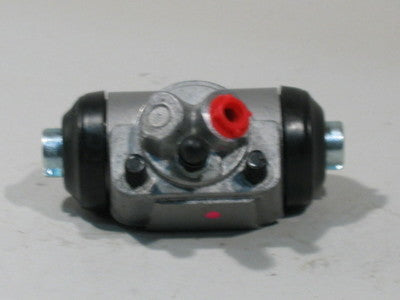

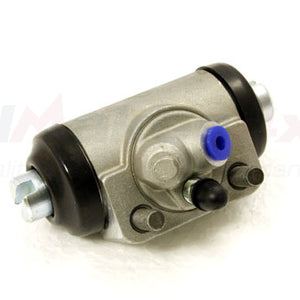

Wheel Cylinder for the drum brake assembly - the left-hand hydraulic slave cylinder that operates the brake shoes. The same cylinder serves either the front or rear position.

Fed by the brake line from the master cylinder, the cylinder's pistons move outward under hydraulic pressure to press the shoes against the drum, then retract as the pressure releases. A leaking or seized cylinder produces a soft pedal, fluid loss or a dragging brake, and is renewed as a complete unit.

Vehicle Model Land Rover Defender up to 2016
Land Rover Series 1
Land Rover Series 2 and 3

Fitment Notes SERIES I/II/IIA/III — Wheel (slave) cylinder, LH, fits front and rear brakes

Alternative Codes

243297R243297243297ESBR 1095BR 1095AGWC306GWC306ALW30073

In stock 24 units

19 · Gouda 5 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 1 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 243297R wheel cylinder for?

The 243297R is the left-hand drum brake wheel cylinder, the hydraulic slave that drives the brake shoes. Pressure from the master cylinder pushes its pistons out against the shoes, then they retract as pressure releases. It suits the front or rear drum.

What brake pipe thread does the 243297R use?

The 243297R takes a 5/16 UNF brake pipe union nut. Check your existing brake line uses the matching 5/16 UNF fitting before ordering. It's the left-hand cylinder for the Land Rover Series 1, Series 2 and 3 and the Defender.

When should the 243297R be replaced?

Replace the 243297R when it leaks or seizes, shown by a soft pedal, fluid at the backplate, or a dragging brake. Drum wheel cylinders are renewed as a complete unit. As a brake hydraulic part, fit a new one rather than attempting a rebuild.
