243296 - Wheel brake cylinder RH by AllmakesBrake Part Land Rover Range Rover Series

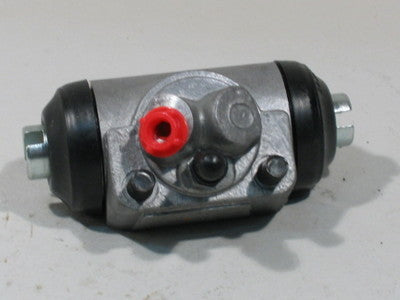

243296 - Wheel Cylinder – RH – Front/Rear

- €18,80

€18,80

€18,80 - €18,80

€18,80

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Wheel Cylinder for the drum brake assembly - the right-hand hydraulic slave cylinder that operates the brake shoes. The same cylinder serves either the front or rear position.

Fed by the brake line from the master cylinder, the cylinder's pistons move outward under hydraulic pressure to press the shoes against the drum, then retract as the pressure releases. A leaking or seized cylinder produces a soft pedal, fluid loss or a dragging brake, and is renewed as a complete unit.

Vehicle Model Land Rover Series 1
Land Rover Series 2 and 3

Fitment Notes SERIES I/II/IIA/III — Wheel (slave) cylinder, RH, fits front and rear brakes

Alternative Codes

243296R243296243296ESBR 1096AGWC305GWC305ALW30072

In stock 17 units

12 · Gouda 5 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 1 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 243296R wheel cylinder used for?

The 243296R is the right-hand drum brake wheel cylinder, the hydraulic slave that operates the brake shoes. Brake-line pressure from the master cylinder drives its pistons out to press the shoes against the drum. It serves the front or rear drum position.

Why do drum brake wheel cylinders fail?

Drum brake wheel cylinders fail when the internal seals perish and let fluid past, or when the bore corrodes and the piston seizes. On the 243296R this shows as a soft pedal, fluid weeping at the backplate, or a dragging brake. It's replaced as a complete unit.

Which Land Rovers does the 243296R fit?

The 243296R right-hand wheel cylinder fits the Land Rover Series 1, Series 2 and 3 in both front and rear drum positions. The left-hand side takes a different cylinder. Check the side and your brake layout before ordering.
