243303 - Wheel Cylinder – SWB – Rear – LH

- €16,60

€16,60

€16,60 - €16,60

€16,60

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

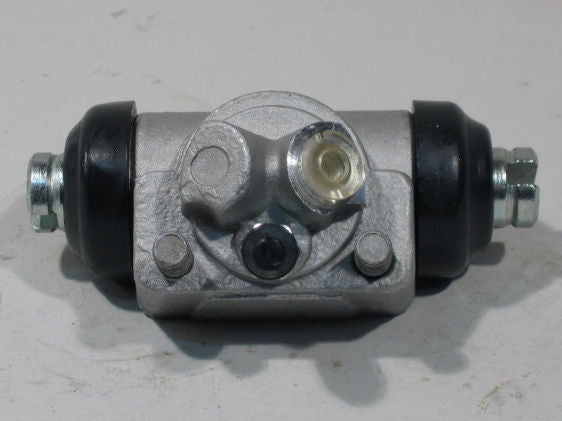

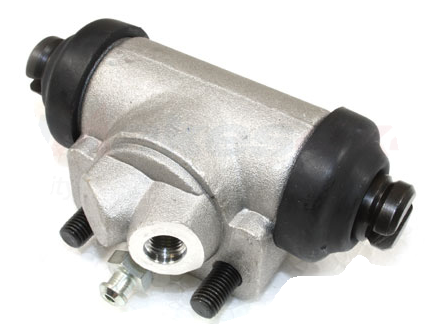

Wheel Cylinder for the rear drum brake assembly, left-hand side.

The wheel cylinder forms part of the hydraulic drum brake circuit, converting hydraulic pressure delivered from the master cylinder into the mechanical force that pushes the brake shoes outward against the drum. It mounts to the rear backplate in the left-hand position and uses a 5/16 UNF threaded connection.

The matching right-hand cylinder is part number 243302.

Vehicle Model Land Rover Series 1
Land Rover Series 2 and 3

Fitment Notes SERIES I/II/IIA/III — Wheel (slave) cylinder, LH, rear. SWB (88in), approx 1954-1984

Alternative Codes

243303R243303243303ESBR 1099GWC1307

In stock 23 units

15 · Gouda 8 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the rear wheel cylinder and what does it do?

The rear wheel cylinder is the hydraulic slave cylinder in the Series Land Rover rear drum brake, left-hand side. Brake-line pressure pushes its pistons out, forcing the brake shoes against the drum to slow the wheel. It bolts to the rear backplate on short-wheelbase (88in) Series I, II, IIA and III models.

Left or right, and how many do I need?

This is the left-hand rear cylinder. Drum brakes use one cylinder per wheel, so a SWB axle takes two, left and right. The right-hand side is a separate part, so order one of each if you're overhauling both rear brakes.

Why do Series wheel cylinders fail?

Series wheel cylinders typically fail when their seals perish or the bore corrodes, letting fluid weep past the piston. Look for a soft or sinking pedal, fluid behind the drum, and uneven braking. Fluid-soaked shoes should be replaced alongside the cylinder.

Which models does this fit?

This left-hand rear wheel cylinder fits Land Rover Series I, II, IIA and III short-wheelbase (88in) models, roughly 1954 to 1984. It's the rear drum brake position. Long-wheelbase and front brakes differ, so confirm your wheelbase and side before ordering.
