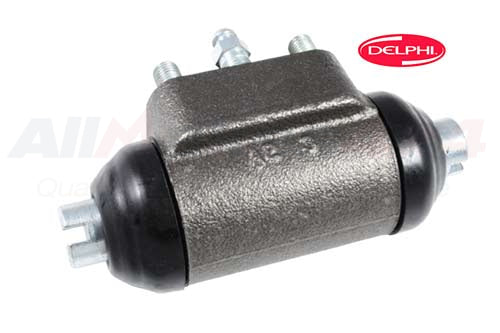

243296D - Wheel brake cylinder RH front or rear by DelphiBrake Part Land Rover Range Rover Series

243296D - Wheel Cylinder – RH – Front/Rear

- €29,90

€29,90

€29,90 - €29,90

€29,90

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Delphi

Wheel Cylinder for the drum brake assembly - the right-hand hydraulic slave cylinder that operates the brake shoes. The same cylinder serves either the front or rear position.

Fed by the brake line from the master cylinder, the cylinder's pistons move outward under hydraulic pressure to press the shoes against the drum, then retract as the pressure releases. A leaking or seized cylinder produces a soft pedal, fluid loss or a dragging brake, and is renewed as a complete unit.

Vehicle Model Land Rover Series 1
Land Rover Series 2 and 3

Fitment Notes SERIES I/II/IIA/III — Wheel (slave) cylinder, RH, fits front and rear brakes

Alternative Codes

243296D243296BR 1096AGWC305GWC305ALW30072

In stock 9 units

4 · Gouda 5 · Drachten

Express delivery available

7 more on the way · ETA 17-07-2026

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

7 more units on the way — expected 17-07-2026. Orders beyond current stock are reserved from incoming stock and shipped as soon as they arrive.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 1 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the 243296D wheel cylinder do?

The 243296D is the right-hand hydraulic slave cylinder for the drum brake. Fed by the brake line from the master cylinder, its pistons push outward under pressure to force the brake shoes against the drum, then retract as pressure releases. It fits the front or rear drum.

What are the signs a wheel cylinder needs replacing?

A leaking or seized wheel cylinder shows as a soft brake pedal, fluid loss at the backplate, or a brake that drags. The 243296D is renewed as a complete unit, not rebuilt. Replace it as soon as these symptoms appear to keep the drum brake safe.

Is the 243296D for the left or right side?

The 243296D is the right-hand wheel cylinder and fits both front and rear drum positions on the Land Rover Series 1, Series 2 and 3. The left-hand side uses a separate cylinder. Confirm the side and your brake layout before ordering.
