GA4277 - Performance Standard Height Coil Springs - Front by AftermarketSteering or Suspension Part Land Rover Range Rover Defender, Discovery, Range Rover

GA4277 - Coil Spring – Standard Height – Front

- €122,00

€122,00

€122,00 - €122,00

€122,00

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Front Coil Spring - front suspension coil spring, seated between the axle spring pad and the chassis spring turret to support the vehicle and control axle movement.

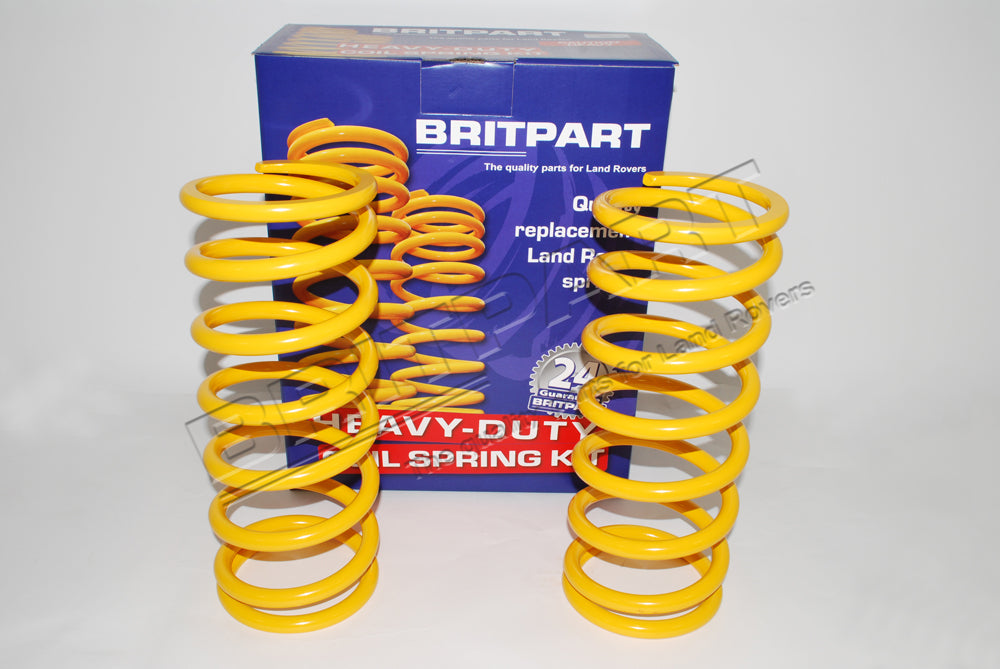

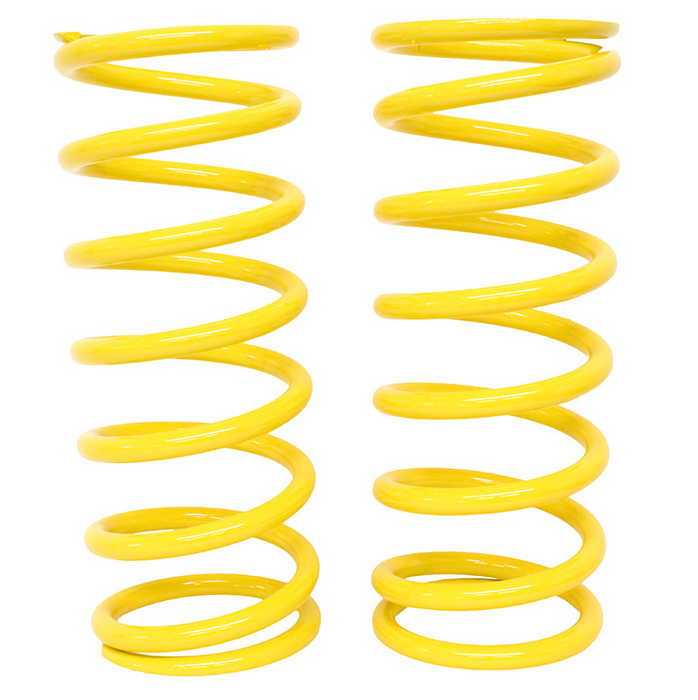

Uprated to a 225 lbs/in rate for a firmer ride and reduced body roll while retaining standard ride height (no lift), suited to load-carrying or performance-tuned use. Bar diameter 16mm, free height 390mm, powder-coated yellow. Supplied as a front pair.

Designed to retain full axle articulation off-road with a compliant ride.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes DEFENDER 90/110 — Front coil springs, standard height, pair
DISCOVERY 1 — Front coil springs, standard height, pair
RANGE ROVER CLASSIC — Front coil springs, standard height, pair

Alternative Codes

DA4277GA4277

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the DA4277 coil spring and what does it do?

The DA4277 is a front suspension coil spring, seated between the axle spring pad and the chassis spring turret. It supports the vehicle and controls axle movement. It's an uprated spring that keeps standard ride height with no lift, giving a firmer ride and reduced body roll.

Is the DA4277 sold singly or as a pair?

The DA4277 is supplied as a front pair, so one order covers both front springs. Front coil springs should be fitted in pairs to keep the suspension balanced side to side, so you won't need to buy two separately.

What are the signs a front coil spring needs replacing?

Front coil springs typically need replacing when the vehicle sags at one corner, the ride turns harsh, or a spring has cracked or snapped. On Land Rovers they can weaken or break with age and load. A failed front spring affects ride height and handling, so replace them in pairs.

Which models does the DA4277 fit, and does it change ride height?

The DA4277 fits the Defender 90/110, Discovery 1 and Range Rover Classic at the front. It retains standard ride height, so it's not a lift spring. If you're after raised height, this isn't the right spring. Confirm your model before ordering.
