DA9016 - Transfer case sump cover by Aftermarket, BritpartTransmission or Gearbox Part Land Rover Range Rover Series

DA9016 - Transfer Box Sump Cover

- €195,00

€195,00

€195,00 - €195,00

€195,00

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

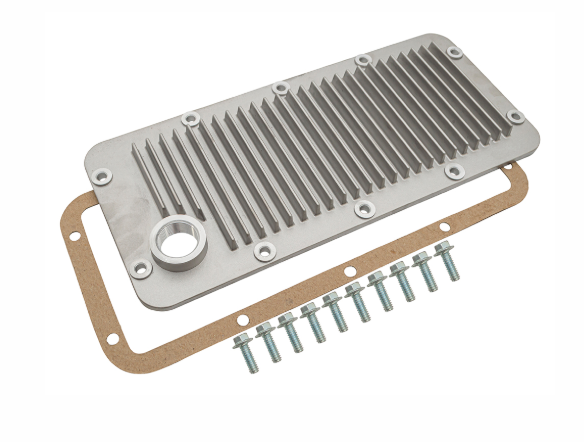

Transfer Box Sump Cover is a finned billet aluminium cover plate that replaces the pressed-steel sump cover on the underside of the transfer case.

Machined from solid aluminium, it is considerably stiffer than the original pressing and expands and contracts at the same rate as the aluminium transfer case, which addresses the oil weeping common to the original steel cover. The cast fins increase surface area to help dissipate heat from the transfer case oil.

Supplied with a new mounting gasket and replacement fixing bolts. Earlier vehicles can reuse the original drain plug and washer; castings with metric threads require drain plug 235592.

Vehicle Model Land Rover Series 1
Land Rover Series 2 and 3

Fitment Notes SERIES 1 — All
SERIES 2 & 2A — All except V8 engines
SERIES 3 — All except V8 engines

Alternative Codes

DA9016GA9016

In stock 1 unit

1 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the DA9016 transfer box sump cover?

The DA9016 transfer box sump cover is a finned billet aluminium plate that replaces the pressed-steel sump cover on the underside of the transfer case. It fits Land Rover Series 1, Series 2 and 2A, and Series 3, on all except V8-engined models.

Why fit an aluminium cover instead of the steel original?

The aluminium cover expands and contracts at the same rate as the alloy transfer case, which addresses the oil weeping common where the original steel cover is used. The cast fins also increase surface area to help dissipate heat from the transfer case oil.

What's included with the sump cover?

The DA9016 is supplied with a new mounting gasket and replacement fixing bolts. Earlier vehicles can typically reuse the original drain plug and washer, while castings with metric threads require drain plug 235592.
