561197 - Transfer Box Intermediate Shaft Shim – 0.005in

- €5,50

€5,50

€5,50 - €5,50

€5,50

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

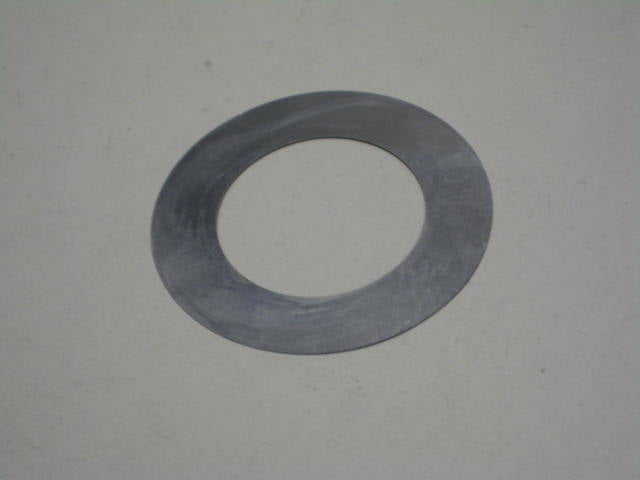

Transfer Box Intermediate Shaft Shim, 0.005in thick, used in the transfer box to set the end float of the intermediate gear on its shaft.

Selective-thickness shims are fitted at the intermediate gear to take up clearance and establish the correct end float, so the gear runs without excessive axial play. This shim provides a 0.005in adjustment increment.

Supplied as a single shim.

Vehicle Model Land Rover Defender up to 2016
Land Rover Series 1
Land Rover Series 2 and 3

Fitment Notes Fitment data limited — derived from web research, verify if uncertain
SERIES II/IIA/III 1964-1984 — Transfer box intermediate gear shaft shim, intermediate shaft suffix B/C onwards. 0.005in thick, used to set intermediate gear end float (approx 0.008in)

Alternative Codes

561197521327

In stock 39 units

36 · Gouda 3 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the Transfer Box Intermediate Shaft Shim used for?

The Transfer Box Intermediate Shaft Shim sets the end float of the intermediate gear on its shaft inside the transfer box. This 0.005in shim is a selective-thickness shim, fitted to take up axial clearance so the intermediate gear runs without excessive play. Fits Land Rover Series 2, 3 and Defender up to 2016.

How many 0.005in shims do I need?

The number of 0.005in shims needed varies, because end float is set selectively. You typically build up a combination of shim thicknesses to reach the correct intermediate gear end float in the workshop manual. Quantity depends on the clearance measured during assembly, so it's not a fixed count.

Which Land Rover transfer boxes does this shim fit?

This intermediate shaft shim fits the Series 2, 3 and Defender transfer box with intermediate shaft suffix B/C onwards. It's the 0.005in adjustment increment used at the intermediate gear. Confirm your intermediate shaft suffix before ordering, since earlier shafts can differ.
