8510308 - Clutch Plate – V8 – 5-Speed

- €58,00

€58,00

€58,00 - €58,00

€58,00

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

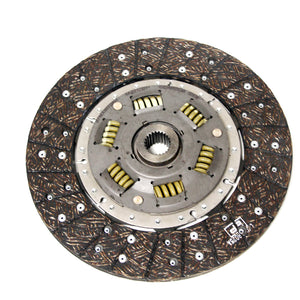

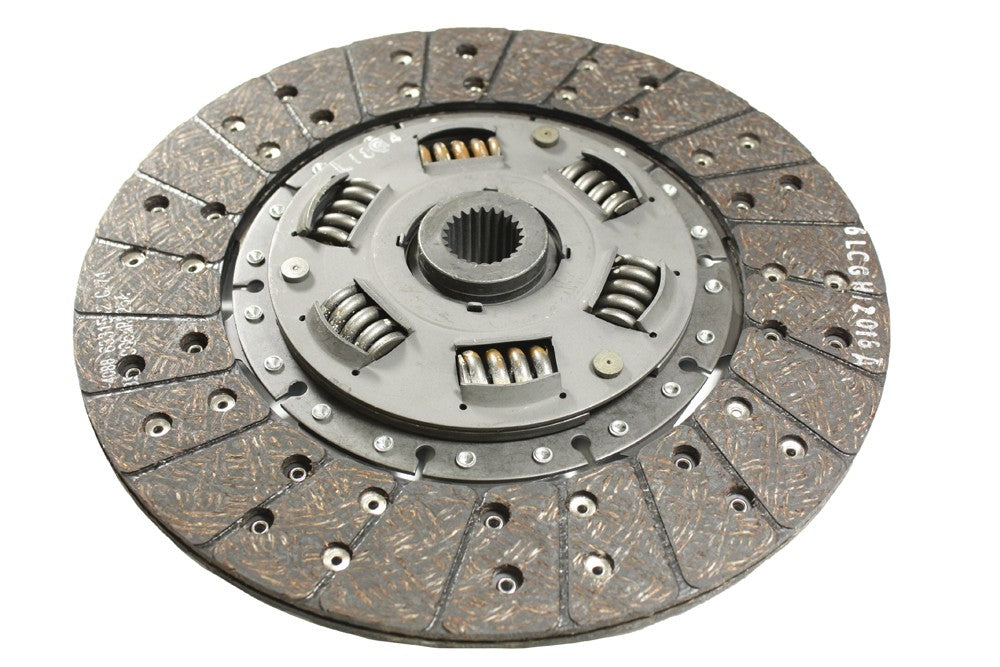

Clutch Driven Plate for the V8 clutch assembly. It is carried on the gearbox input shaft between the flywheel and the clutch cover (pressure plate), transmitting engine torque to the gearbox when the clutch is engaged and absorbing driveline shock through its sprung hub.

This plate has a 23-tooth spline for the LT77 and R380 5-speed gearboxes (not the LT95).

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes Defender (to 2006) — V8, LT77 / R380 5-speed (23-tooth spline), not LT95
Discovery 1 — V8, LT77 / R380 5-speed (23-tooth spline)
Range Rover Classic — V8, LT77 / R380 5-speed (23-tooth spline), not LT95

Alternative Codes

FRC9774G8510308HB8311BR 1345DP8311FRC6685FTC160FTC3197FTC4662

In stock 2 units

1 · Gouda 1 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the FRC9774G clutch plate used for?

The FRC9774G is the clutch driven plate for the V8. It sits on the gearbox input shaft between the flywheel and the pressure plate, transmitting engine torque to the gearbox and absorbing driveline shock through its sprung hub. Fitted to Defender, Discovery 1 and Range Rover Classic V8 models.

Which gearbox does the FRC9774G clutch plate fit?

The FRC9774G has a 23-tooth spline for the LT77 and R380 5-speed gearboxes. It does not fit the LT95. If you're running a 5-speed behind your V8, this is the matching plate, but confirm the spline count, since the LT95 uses a different driven plate.

What are the signs the clutch plate needs replacing?

Typically a worn clutch driven plate shows up as clutch slip under load, judder when pulling away, or a high biting point. On the V8 the plate wears through normal use as the friction lining thins. It's usually replaced together with the cover and release bearing.

Which Land Rovers does the FRC9774G fit?

The FRC9774G fits the V8 Defender up to 2006, Discovery 1 and Range Rover Classic, all with the LT77 or R380 5-speed gearbox. Confirm you have the 5-speed and not the LT95 before ordering, as the spline count differs.
