FTC2066 - Swivel Pin Thrust Washer – Upper – ABS by AftermarketSteering or Suspension Part Land Rover Range Rover Discovery, Range Rover

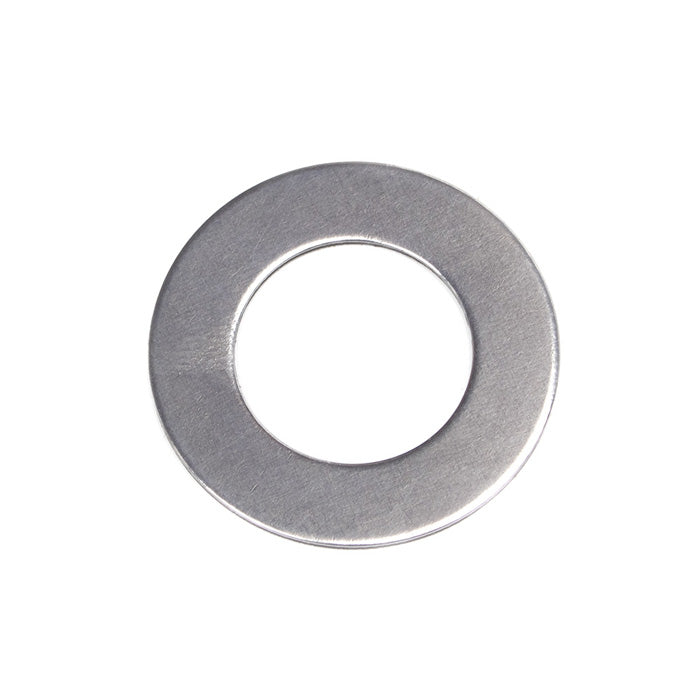

FTC2066 - Swivel Pin Thrust Washer – Upper – ABS

- €2,50
€2,50
€2,50 - €2,50
€2,50
Tip: Log in to your account to unlock volume discounts on this item.
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Swivel Pin Thrust Washer - Upper is the shim washer that sits above the upper swivel pin bearing in the front axle swivel housing assembly.

It sets the endfloat of the upper swivel pin and locates the bearing, controlling the preload as the housing pivots through the steering angle. This is the washer for the ABS swivel housing variant. It is also serviced as one of the components of the swivel pin repair kit.
Vehicle Model Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994
Fitment Notes DISCOVERY 1 1989-1998 — 4 Wheel ABS swivel pin housing, VIN FA393361 to WA799999
RANGE ROVER CLASSIC 1986-1991 — 4 Wheel Anti-Lock Braking System, to VIN HA610293. Also serviced as part of a kit
RANGE ROVER CLASSIC 1992-1994 — 4 Wheel Anti-Lock Braking System, from VIN JA610294. Also serviced as part of a kit
Alternative Codes
FTC2066

In stock 25 units
25 · Gouda 0 · Drachten
Express delivery available

When will my order arrive?
  • Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
  • UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
  • Netherlands / Belgium / Germany: 2–4 working days.
  • Other EU countries + UK: 4–8 working days.
  • Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the upper swivel pin thrust washer for?
The upper swivel pin thrust washer is the shim washer that sits above the upper swivel pin bearing in the front axle swivel housing. It typically sets the swivel pin endfloat and locates the bearing, controlling preload as the housing pivots through the steering angle. This is the washer for the ABS swivel housing.
Does this washer fit non-ABS swivel housings?
No, this thrust washer is for the 4-wheel ABS swivel housing only. It fits Discovery 1 ABS housings from VIN FA393361 to WA799999 and Range Rover Classic with 4-wheel ABS. Non-ABS housings use a different washer, so confirm your axle type before ordering.
How many thrust washers are needed?
You typically need one upper thrust washer per swivel housing, so two for a full front axle rebuild. The washer sets bearing preload, so it's usually renewed alongside the swivel pin bearing rather than reused.
Should the thrust washer be replaced or reused?
Replace the swivel pin thrust washer rather than reuse it. As a preload-setting shim it wears with the bearing, and it's typically supplied as part of the swivel pin repair kit. Refitting a worn washer can leave the swivel pin endfloat out of specification.
