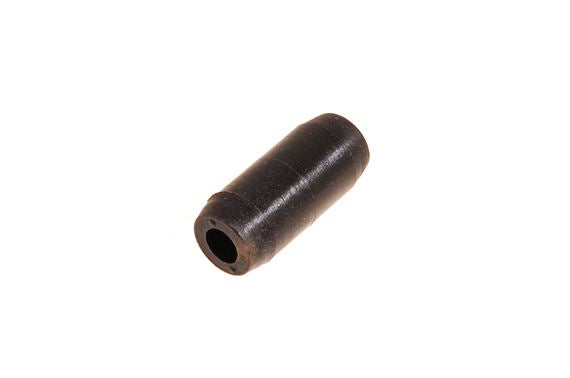

LCL100020L - Cylinder Head Dowel – Plastic

- €8,10

€8,10

€8,10 - €8,10

€8,10

Tip: Log in to your account to unlock volume discounts on this item.

Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.

Cylinder Head Dowel - Plastic is a locating pin fitted at the mating face between the cylinder block and cylinder head in the Td5 2.5L 5-cylinder turbo diesel and the 2.0L I4 TCIE diesel engines.

The dowel ensures accurate alignment of the head gasket and cylinder head during assembly.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 2 1998-2004 (L318)
Land Rover Freelander 1 1996-2006 (L314)

Fitment Notes DEFENDER 1987-2006 — TD5 2.5L diesel, cylinder block and head dowel
DISCOVERY 2 1998-2004 — TD5 2.5L diesel, cylinder block and head dowel, from (V)1A736339
FREELANDER 1 1996-2006 — 2.0L I4 TCIE diesel, cylinder block dowel

Alternative Codes

LCL100020L

In stock 3 units

2 · Gouda 1 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LCL100020L cylinder head dowel for?

The LCL100020L is a plastic cylinder head locating dowel fitted at the joint between the cylinder block and cylinder head. It aligns the head gasket and cylinder head accurately during assembly. It's a Genuine Land Rover part for Td5 diesel and Freelander 1 diesel engines.

How many cylinder head dowels are needed?

Two locating dowels are typically used per cylinder head on these engines, one at each end of the block-to-head joint. They're usually replaced together when the head is removed for a gasket job.

Is there a stronger alternative to the plastic dowel?

Yes. The steel dowel YLL500040 is a more durable alternative to this plastic version and is often preferred on the Td5 engine. Many builders fit two steel dowels in place of the plastic part when rebuilding the cylinder head.

Which engines does this dowel fit?

This dowel fits the Td5 2.5L diesel in the Defender (1987-2006) and Discovery 2 (from VIN 1A736339), plus the 2.0L diesel in the Freelander 1 (1996-2006). Confirm your engine, as it locates the block-to-head joint on these diesels.

Frequently Bought With

Products most often purchased alongside this one.

16 items

Aftermarket

LKJ000010 - Inlet Manifold Gasket – Td5

€9,50 excl. VAT

Aftermarket

LKG100470 - Exhaust Manifold Gasket – Td5

€13,90 excl. VAT

Aftermarket

MSX000010 - Connector Block Gasket – Td5 – 2A On

€2,10 excl. VAT

OEM

ERR5384G - Cylinder Head Bolt – 2.5L Td5

€13,70 excl. VAT

Aftermarket

ERR7094 - Cam Cover Gasket – Td5

€7,20 excl. VAT

OEM

YLL500040 - Cylinder Head Dowel – TD5

€0,90 excl. VAT

OEM

LDI100030 - Camshaft Oil Seal – Front

€9,40 excl. VAT

Aftermarket

LVJ000010 - Thermostat Gasket – TD5

€1,80 excl. VAT

Aftermarket

LVP000020 - Camshaft gasket TD5 1A622423 on

€10,90 excl. VAT

OEM

LYG000230 - Cam Cover Bolt – Flanged

€8,30 excl. VAT

OEM

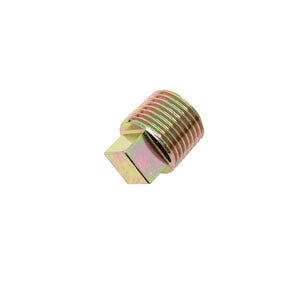

3292 - Oil Filler Plug
