MSX000010 - Connector Block Gasket – Td5 – 2A On

- €2,10

€2,10

€2,10 - €2,10

€2,10

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

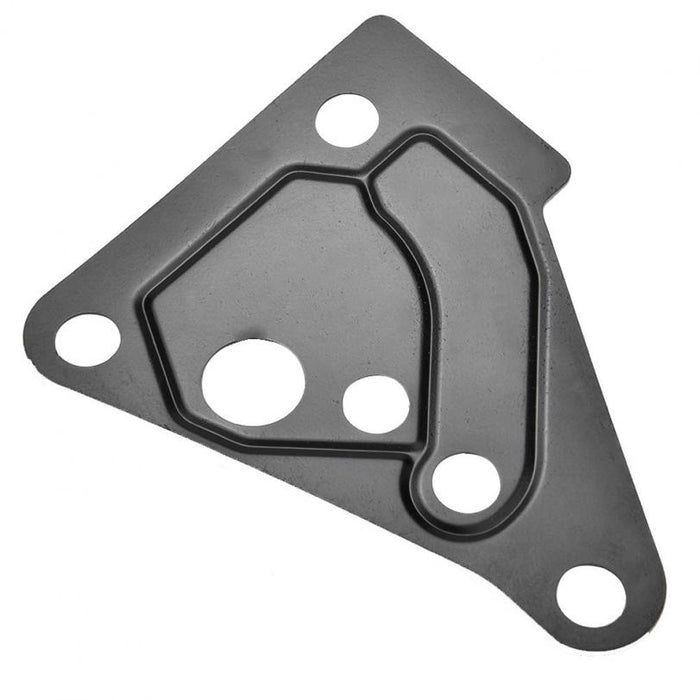

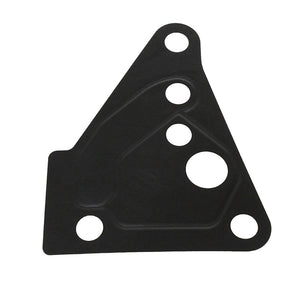

Fuel Connector Block Gasket for the Td5 2.5L five-cylinder diesel engine, sealing the fuel connector block to the engine within the fuel pressure regulator circuit.

It forms the sealing face where the connector block, which carries the fuel pressure regulator, mounts to the engine and prevents fuel leakage at the joint. Renew the gasket whenever the regulator or connector block is disturbed.

This gasket suits later Td5 engines; the companion gasket for earlier engines is MSX100080.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 2 1998-2004 (L318)

Fitment Notes DEFENDER 1987-2006 — 2.5L TD5 5 Cyl Diesel, from engine number 10P15968B
DISCOVERY 2 1998-2004 — 2.5L TD5 5 Cyl Diesel, from engine number 10P15968B

Alternative Codes

MSX000010

In stock 74 units

58 · Gouda 16 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 1 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the MSX000010 Connector Block Gasket seal on the Td5?

MSX000010 seals the fuel connector block to the engine on the Td5 2.5L 5-cylinder diesel. The connector block carries the fuel pressure regulator, and this gasket forms the sealing face at that joint. Replace it whenever the regulator or connector block is disturbed.

Does MSX000010 fit all Td5 engines?

No. MSX000010 suits later Td5 engines from engine number 10P15968B onwards. Earlier Td5 engines use a different connector block gasket, MSX100080. Check your engine number before ordering to confirm which version you need.

Should the MSX000010 gasket be reused once removed?

No. Replace it every time the connector block is disturbed. This applies to regulator replacement, fuel pressure diagnosis, or injector harness work on Td5-engined Defenders (up to 2006) and Discovery 2 (1998-2004).
