MSX100080 - Fuel Block Gasket – Td5 – Pre-1A

- €2,80

€2,80

€2,80 - €2,80

€2,80

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

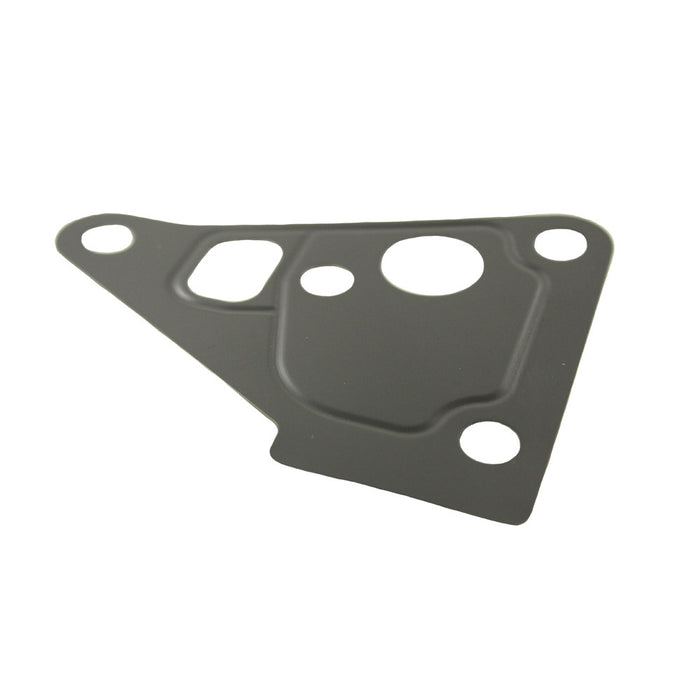

Fuel Connector Block Gasket for the Td5 2.5L five-cylinder turbo diesel engine, sealing the fuel connector block to the engine within the fuel pressure regulator circuit.

It forms the sealing face where the connector block, which carries the fuel pressure regulator, mounts to the engine and prevents fuel leakage at the joint. Renew the gasket whenever the regulator or connector block is disturbed.

This gasket suits earlier Td5 engines; the companion gasket for later engines is MSX000010.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 2 1998-2004 (L318)

Fitment Notes DEFENDER 1987-2006 — Td5 2.5L 5-cyl turbo diesel fuel connector block gasket, to engine no. 10P15967B
DISCOVERY 2 1998-2004 — Td5 2.5L 5-cyl turbo diesel fuel connector block gasket, to engine no. 10P15967B

Alternative Codes

MSX100080MSX100080X

In stock 37 units

27 · Gouda 10 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the MSX100080 fuel block gasket seal?

The MSX100080 seals the fuel connector block on the Td5 engine, where the fuel rail inlet and return pipes connect to the injection system. A leaking gasket can cause diesel fumes in the engine bay and fuel pressure loss that affects starting and running.

Which Td5 engines use this gasket?

This fits the 2.5L Td5 engine up to engine number 10P15967B in the Land Rover Defender and Discovery 2. It's the pre-1A Td5 variant. Engines beyond this number use a different specification, so confirm your engine number before ordering.

Should the fuel block gasket be replaced when disturbing the fuel rail?

Yes. The MSX100080 seals under compression and once removed, the sealing face is compromised. Reusing an old gasket typically results in a fuel leak. Fit a new gasket any time the fuel connector block is disturbed.
