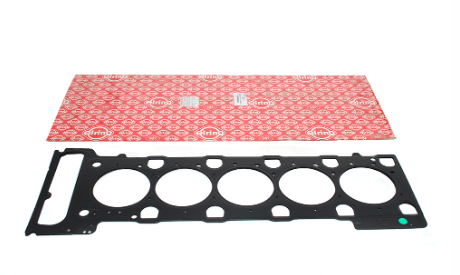

LVB000240G - Head Gasket – TD5 – 2-Hole

- €63,60

€63,60

€63,60 - €63,60

€63,60

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Elring

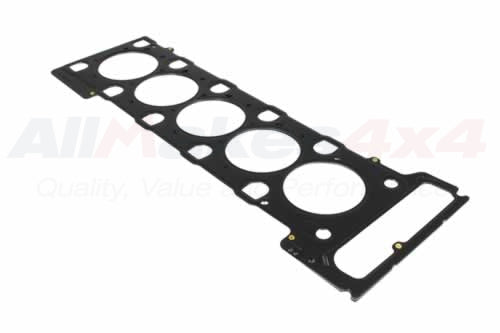

Head Gasket for the Td5 2.5L 5-cylinder turbo diesel engine, sealing the joint between the cylinder head and the cylinder block.

It seals the combustion chambers together with the coolant and oil galleries that cross the head-to-block face. This is the 2-hole grade at 1.20mm thickness. On the Td5 the identification holes on the gasket tab denote the compressed thickness, which is selected to match the measured piston protrusion above the block deck so that the correct compression height is maintained.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 2 1998-2004 (L318)

Fitment Notes DEFENDER 1999-2006 — TD5 engine, 2-hole, 1.20mm
DISCOVERY 2 1998-2004 — TD5 engine, 2-hole, 1.20mm

Alternative Codes

LVB000240LVB000240GLVB000240XERR6824LVB000190LVB00024

In stock 2 units

1 · Gouda 1 · Drachten

Express delivery available

2 more on the way · ETA 31-07-2026

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

2 more units on the way — expected 31-07-2026. Orders beyond current stock are reserved from incoming stock and shipped as soon as they arrive.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LVB000240 head gasket used for?

The LVB000240 head gasket seals the cylinder head to the block on the 2.5L Td5 diesel, fitted to the Defender 1999-2006 and Discovery 2. It seals the combustion chambers along with the coolant and oil galleries that cross the head-to-block face.

How do I know if I need the 2-hole grade?

The 2-hole grade is the 1.20mm thickness. On the Td5 the identification holes denote the compressed gasket thickness, which is typically selected to match measured piston protrusion above the block deck. Measure protrusion before ordering to confirm the 2-hole grade is correct.

Why does the head gasket fail on a Td5?

Head gasket failure on the Td5 typically shows as coolant loss, white exhaust smoke, or oil and coolant mixing. It usually stems from overheating or age. Left unreplaced it can warp the cylinder head, so renew it once these symptoms appear.

How do I confirm this fits my vehicle?

This fits the Td5 2.5L Defender 1999-2006 and Discovery 2 1998-2004. It's the 2-hole 1.20mm grade specifically. Confirm your engine is the Td5 and check piston protrusion to verify you need the 2-hole thickness rather than another grade.
