RTC2990 - Crown Wheel & Pinion – 10 Spline

- €173,50

€173,50

€173,50 - €173,50

€173,50

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

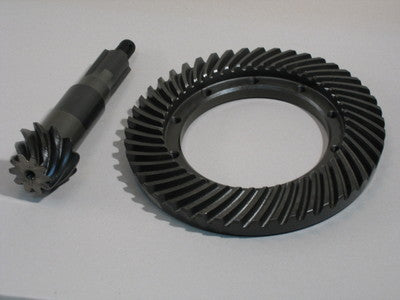

Crown Wheel & Pinion is the final-drive gear set within the differential, transferring drive from the propshaft into the axle and turning it through 90 degrees to the road wheels while providing the final gear reduction.

This set has a 10-spline pinion and a 47/10 tooth count, giving a 4.7:1 final-drive ratio. It fits Rover-type front or rear axles.

The crown wheel and pinion are a matched pair and must be fitted together, with the pinion depth and backlash set on assembly to establish correct tooth contact.

Vehicle Model Land Rover Defender up to 2016
Land Rover Series 2 and 3

Fitment Notes SERIES 3 — front axle crown wheel & pinion, 10 spline; fits 2.25 petrol (except 109 1 Ton) and 2.6 6-cyl petrol (except 1 Ton)

Alternative Codes

RTC2990504689542341600538608457RTC2635

In stock 1 unit

1 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the RTC2990 crown wheel and pinion and what does it do?

The RTC2990 crown wheel and pinion is the final-drive gear set inside a Land Rover axle. It transfers drive from the propshaft into the axle, turns it through 90 degrees to the wheels, and provides the final gear reduction. It's a matched pair, so the crown wheel and pinion are always fitted together.

What ratio and spline count does the RTC2990 have?

The RTC2990 has a 47/10 tooth count, giving a 4.7:1 final-drive ratio, on a 10-spline pinion. Both axles on the vehicle must run matching ratios, so check the crown wheel and pinion in the opposite axle is also 4.7:1 before fitting.

Which Land Rovers does the RTC2990 fit?

The RTC2990 fits Land Rover Series 2 and 3 and Defender models up to 2016. On Series 3 it's the front axle crown wheel and pinion for 2.25 petrol (except 109 1 Ton) and 2.6 six-cylinder petrol (except 1 Ton). Confirm your axle's ratio and spline count before ordering.

Why would a crown wheel and pinion need replacing?

A crown wheel and pinion typically needs replacing when the gears whine, howl, or show chipped or worn teeth, usually from age, low oil, or heavy off-road use. On assembly the pinion depth and backlash must be set for correct tooth contact, so it's usually a specialist job needing a setup gauge.
