279970 - Shackle plate LWB rear (not 1-Ton) plain Steering or Suspension Part Land Rover Range Rover Series

279970 - Shackle Plate – LWB – Rear – Plain

- €5,10

€5,10

€5,10 - €5,10

€5,10

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

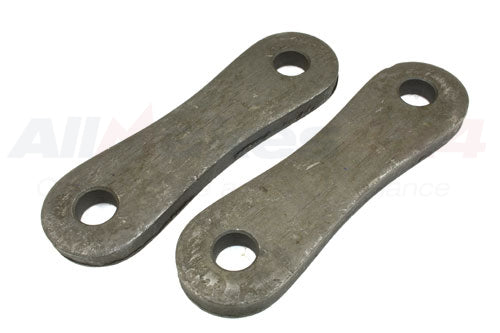

Shackle Plate for the rear leaf spring suspension, forming one half of the spring shackle assembly.

The plate works together with the shackle pins and bushes to connect the rear road spring eye to its chassis mounting bracket, allowing the spring to pivot and vary its effective length as it deflects under load. Supplied with a plain, uncoated steel finish.

Vehicle Model Land Rover Series 2 and 3

Fitment Notes SERIES II/III — LWB 109", all except 1-ton, rear spring shackle plate

Alternative Codes

279970BSC 088

In stock 8 units

6 · Gouda 2 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the shackle plate used for on a Series Land Rover?

The shackle plate forms one half of the rear spring shackle assembly on the Series 2 and 3 long-wheelbase 109 inch. It works with the shackle pins and bushes to connect the rear road spring eye to its chassis bracket, letting the leaf spring pivot and change effective length under load.

How many shackle plates are needed for a rear spring rebuild?

Typically two shackle plates make up each rear spring shackle, one either side of the spring eye, so a full rear rebuild usually needs several. It's sold individually, so order the quantity your job requires.

Does this fit all Series 109 inch models?

This rear shackle plate fits Series 2 and 3 long-wheelbase 109 inch models, all except the 1-ton. The 1-ton 109 inch uses different rear suspension parts, so confirm your model before ordering.

What are the signs a rear shackle plate needs replacing?

A rear shackle plate usually needs replacing when it corrodes, wears oval at the pin holes, or bends, which lets the spring shackle move out of line and causes knocking over bumps. This plate has a plain uncoated steel finish, so protect it against corrosion once fitted.
