592182 - U-bolt by PR2 Allmakes OETransmission or Drivetrain Part Land Rover Range Rover Defender, Series

592182 - U-Bolt – Rear – LWB

- €7,10

€7,10

€7,10 - €7,10

€7,10

Tip: Log in to your account to unlock volume discounts on this item.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand PR2 Allmakes OE

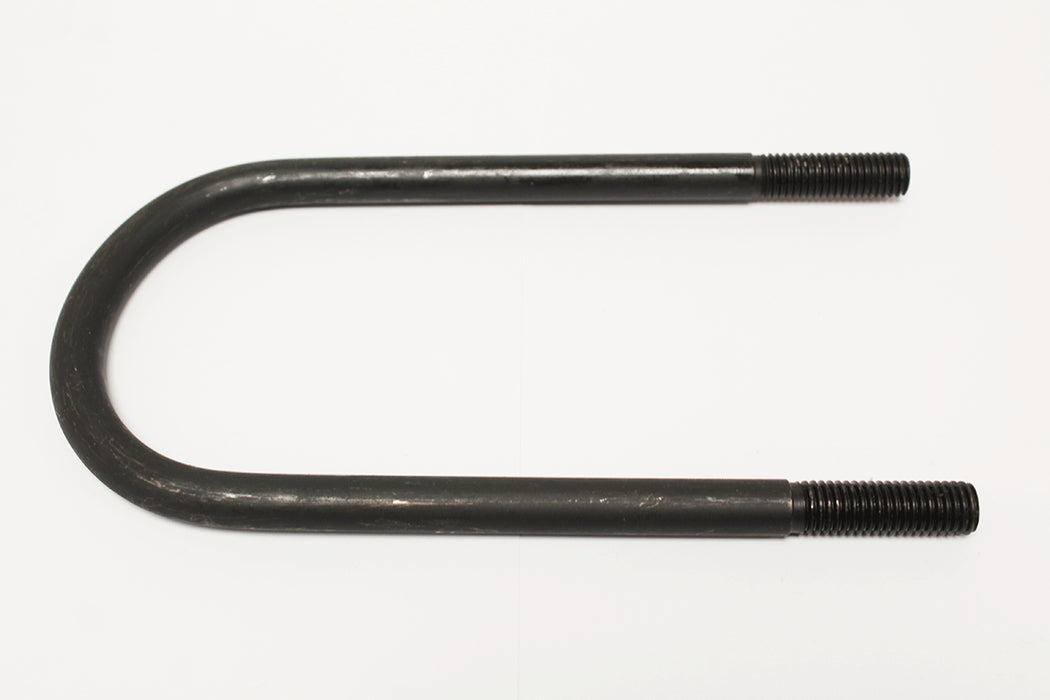

U-Bolt for the rear leaf-spring suspension of long-wheelbase (LWB) models.

The U-shaped bolt passes over the axle and clamps the rear leaf-spring pack to the axle spring seat, secured by nuts at each leg. It locates the spring against the axle and carries the vertical and driving loads between them. Supplied as a single U-bolt.

Vehicle Model Land Rover Defender up to 2016
Land Rover Series 2 and 3

Fitment Notes SERIES II & III — rear U-bolt, LWB models 1971-1984
DEFENDER — early 110 (1983-1984), LWB rear

Alternative Codes

592182BR 3119

In stock 17 units

11 · Gouda 6 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the rear U-bolt (592182) and what does it do?

The rear U-bolt clamps the rear leaf-spring pack to the axle spring seat on long-wheelbase models. The U-shaped bolt passes over the axle and is secured by nuts at each leg, locating the spring and carrying the vertical and driving loads between axle and spring. Supplied as a single U-bolt.

How many U-bolts are needed for the rear axle?

A leaf-sprung rear axle typically uses four U-bolts, two clamping each spring to the axle. This listing is one U-bolt, so order the full quantity for the job. They're usually renewed as a set with fresh nuts whenever the springs or axle are removed.

Which models does this LWB rear U-bolt fit?

This rear U-bolt fits long-wheelbase Series 2 and 3 built 1971 to 1984 and early Defender 110 from 1983 to 1984. It's the LWB rear item, so confirm your vehicle is long-wheelbase with leaf-sprung rear suspension before ordering. Coil-sprung axles use different mountings.

Should U-bolts be replaced when refitting springs?

Yes, U-bolts are typically replaced rather than reused once disturbed. They stretch under clamping load, so a used U-bolt may not hold correct tension on the spring seat. Fresh U-bolts and nuts are usually fitted whenever the rear leaf springs are changed on these long-wheelbase models.

Frequently Bought With

Products most often purchased alongside this one.

16 items

OEM

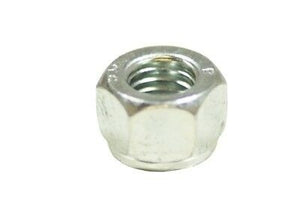

RYH500510 - Nut for U-bolt M12

€0,60 excl. VAT

Aftermarket

252165 - Nyloc Nut – 9/16" UNF

537741 - Shackle Pin

537740 - Shackle Pin

537742 - Shackle Pin – Long

€3,10 excl. VAT

Aftermarket

548205 - Spring Eye Bush

624028 - U-Bolt

RTC3510G - Oil Seal – Wheel Hub Mounting

€9,70 excl. VAT

Aftermarket

624034 - U-Bolt – Front – Square

€6,90 excl. VAT

OEM

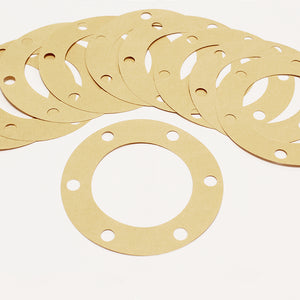

7316 - Differential Carrier Gasket
