LR082331G - Brake caliper carrier mounting bolt by PR2 AllmakesBrake Part Land Rover Range Rover Defender, Discovery, Range Rover

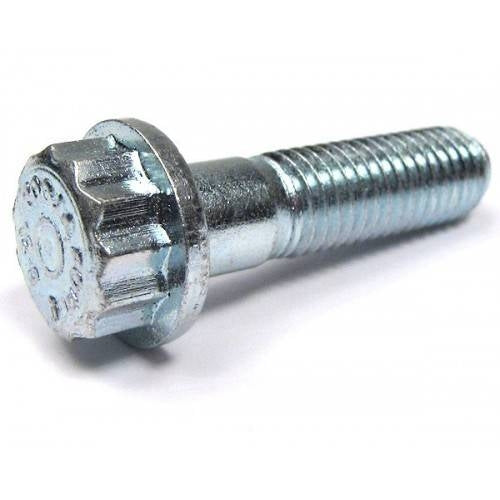

LR082331G - Brake Caliper Carrier Bolt – M10

- €3,20

€3,20

€3,20 - €3,20

€3,20

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Brake Caliper Carrier Bolt secures the brake caliper carrier (mounting bracket) to the axle, providing the clamping force that holds the caliper assembly in position within the braking system.

M10 fixing. On later applications the same bolt also retains the brake mud shield.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes DEFENDER 1987-2006 — M10 bolt, front and rear brake calipers (rear with and without ABS); Qty 10 per vehicle
DEFENDER 2007-2016 — Front and rear calipers from VIN 7A000001 (as LR082331); also secures brake mud shield
DISCOVERY 1 1989-1998 — Front disc brakes; rear non-ABS with 4-wheel disc, less vented discs
RANGE ROVER CLASSIC 1986-1994 — 1986-1991 rear brakes with 4-wheel ABS (to VIN HA610293); 1992-1994 front disc brakes and rear brakes with 4-wheel ABS (from VIN JA610294)

Alternative Codes

FTC1368LR082331LR082331GAFU1180FRC9126UYG500030

In stock 86 units

66 · Gouda 20 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR082331 brake caliper carrier bolt and what does it do?

The LR082331 brake caliper carrier bolt secures the caliper carrier bracket to the axle, giving the clamping force that holds the caliper in position. It's an M10 fixing. On later applications the same bolt also retains the brake mud shield.

How many caliper carrier bolts are needed?

Ten caliper carrier bolts are fitted per vehicle on the Defender (1987-2006), covering front and rear calipers. They're commonly replaced as a set when changing calipers or carriers, since the clamping load makes reusing old bolts a risk. Order the full quantity your job needs.

Should these caliper bolts be reused or replaced?

Brake caliper carrier bolts are typically best replaced rather than reused, especially if they show corrosion or thread damage. They carry the clamping load that holds the caliper to the axle, so a compromised bolt is a safety risk. Tighten to the workshop manual specification.
