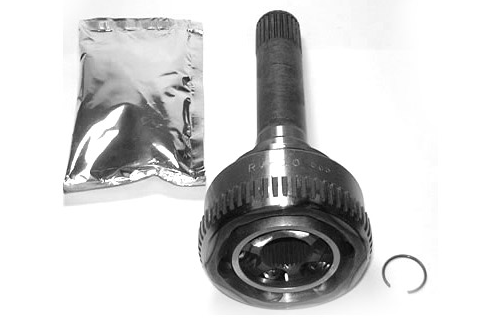

TDJ000010 - Front CV joint drive shaft 24 spline by AllmakesTransmission or Drivetrain Part Land Rover Range Rover Defender, Discovery, Range Rover

TDJ000010 - CV Joint – Front – 24 Spline

- €43,60

€43,60

€43,60 - €43,60

€43,60

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

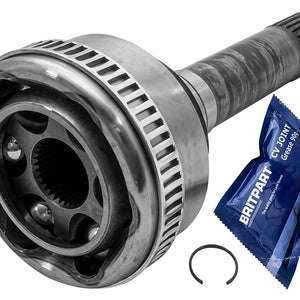

Front Axle CV Joint, 24-spline, for the front drive shaft. The constant velocity joint sits at the outer end of the front axle shaft and transmits drive to the wheel while allowing for steering angle and suspension movement without fluctuation in wheel speed.

It is the articulating coupling between the axle shaft and the stub axle, maintaining smooth torque transfer as the front wheels turn and the axle articulates.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes DEFENDER 1987-2006 — front axle CV joint, 24 spline (Defender 90 1995MY onwards)
DISCOVERY 1 1989-1998 — front axle CV joint, 24 spline; with ABS, or without ABS to VIN JA032851 (VIN FA393361-WA799999)
RANGE ROVER CLASSIC 1992-1994 — front axle CV joint, 24 spline; with ABS, or without ABS to VIN KA624756 (from VIN JA610294)

Alternative Codes

STC3051RTDJ000010

In stock 3 units

2 · Gouda 1 · Drachten

Express delivery available

5 more on the way · ETA 22-07-2026

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

5 more units on the way — expected 22-07-2026. Orders beyond current stock are reserved from incoming stock and shipped as soon as they arrive.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the STC3051R front CV joint do?

The STC3051R is a 24-spline front constant velocity joint that sits at the outer end of the front axle shaft. It transmits drive to the front wheel while allowing for steering angle and suspension movement, keeping wheel speed constant as the axle turns and articulates.

Which Land Rovers take the STC3051R 24-spline CV joint?

The STC3051R fits the Defender (1987-2006, 90 from 1995MY), Discovery 1 (1989-1998), and Range Rover Classic (1992-1994) as the 24-spline front axle CV joint. Some applications depend on ABS and VIN, so check the spline count and your VIN before ordering.

How do I know if I need the 24-spline CV joint?

Land Rover front CV joints come in different spline counts, so the count must match your axle shaft. The STC3051R is the 24-spline version for the front axle. Count the splines on your existing joint or shaft to confirm, since the wrong count won't engage.

What are the signs a front CV joint is failing?

A failing front CV joint typically clicks or knocks on full steering lock, especially under power. On Land Rovers a split CV boot lets grease out and dirt in, which wears the joint. Left too long, a worn joint can seize or break, cutting drive to that front wheel.
