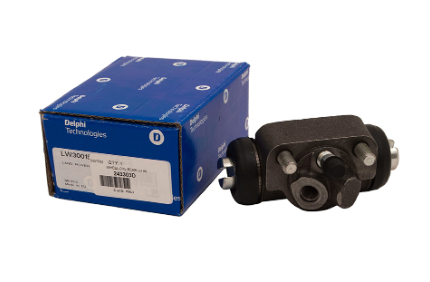

243303G - Wheel brake cylinder LH by DelphiBrake Part Land Rover Range Rover Series

243303G – Wielremcilinder – SWB – Achter – LV

- €27,20

€27,20

€27,20 - €27,20

€27,20

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Delphi

Wielremcilinder voor de linker achtertrommelremmontage.

De wielremcilinder maakt deel uit van het hydraulische trommelremcircuit en zet de hydraulische druk van de hoofdremcilinder om in mechanische kracht die de remschoenen naar buiten tegen de trommel duwt. Deze wordt aan de linkerzijde op de achterste ankerplaat gemonteerd en maakt gebruik van een 5/16 UNF schroefdraadaansluiting.

De bijpassende rechtercilinder heeft onderdeelnummer 243302.

Vehicle Model Land Rover Series 1
Land Rover Series 2 en 3

Fitment Notes SERIE I/II/IIA/III — Wielremcilinder, LA, achter. Korte wielbasis (88 inch), circa 1954-1984

Alternative Codes

243303G243303243303DBR 1099GWC1307

In stock 10 units

9 · Gouda 1 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does this rear wheel cylinder do?

This rear wheel cylinder is the hydraulic slave cylinder in the Series Land Rover rear drum brake, left-hand side. It converts brake-line pressure into the outward force that presses the brake shoes against the drum. It mounts to the rear backplate on short-wheelbase (88in) Series I, II, IIA and III models.

What brake pipe union does this cylinder use?

This cylinder uses a 5/16 UNF union nut for the brake pipe connection. Check that your existing brake pipe or flexible hose end matches the 5/16 UNF thread before fitting, as union sizes varied across Series production.

Left or right, and how many do I need?

This is the left-hand rear cylinder. Each rear drum brake uses one cylinder, so a SWB axle needs two in total, one per side. The right-hand side uses a separate cylinder, so order one of each when rebuilding both rear wheels.

Why do these wheel cylinders fail?

Rear wheel cylinders typically fail when the rubber seals perish or the bore pits with corrosion, letting brake fluid leak past the piston. Symptoms include a sinking pedal, fluid behind the drum, and grabbing or weak braking. Replace the shoes too if fluid has soaked them.
