90560612 - Tank unit (including gasket) by CaerbontFuel System Part Land Rover Range Rover Series

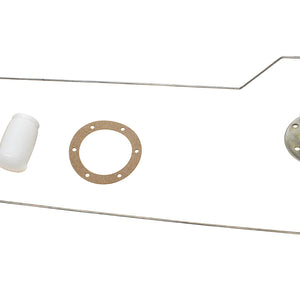

90560612G - Tank Sender Unit – With Gasket

- €85,40

€85,40

€85,40 - €85,40

€85,40

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Caerbont, PR2 Allmakes OE

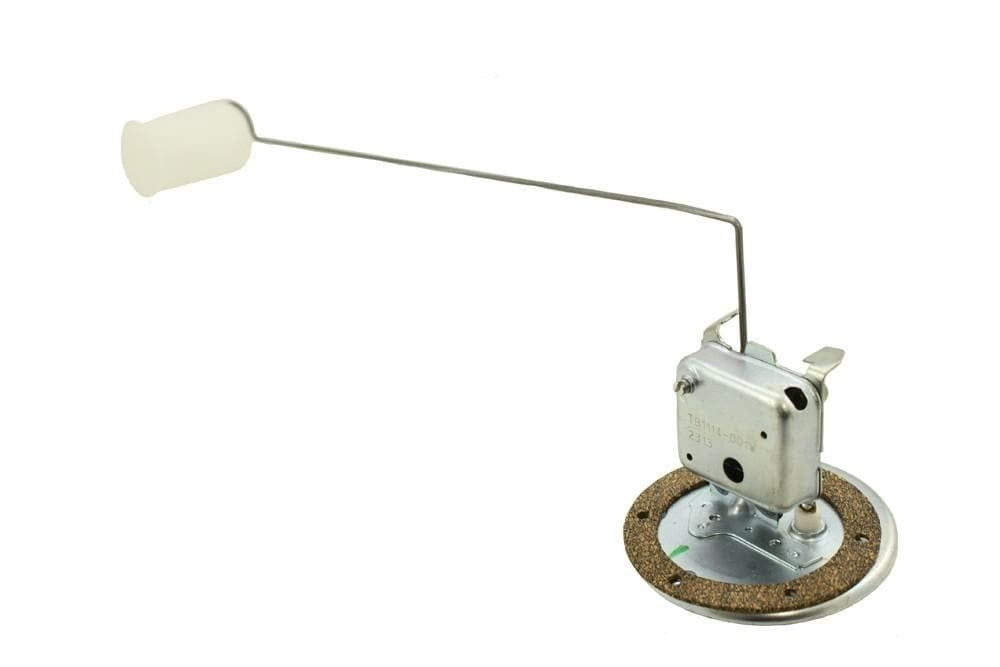

Tank Sender Unit measures the fuel level in the under-seat fuel tank and signals it to the dashboard fuel gauge.

A float-actuated variable-resistance sender, it mounts to the top face of the tank through a six-hole flange and is sealed by the gasket supplied with the unit. For 2.25L diesel applications.

Vehicle Model Land Rover Series 2 and 3

Alternative Codes

5558459056061290560612G90560612X555844555846

On order 5 units · ETA 21-07-2026

Currently out of stock. Order now — we'll ship as soon as it arrives.

When will my order arrive?

We have 5 units on order from our supplier, expected 21-07-2026. Order now to reserve — we'll dispatch as soon as stock arrives.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.

Need it sooner? Contact us about express import (2–5 business days).

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the tank sender unit do on a Series Land Rover?

The tank sender unit measures fuel level in the under-seat fuel tank and signals it to the dashboard fuel gauge. It's a float-actuated, variable-resistance sender that mounts to the top face of the tank through a six-hole flange. Fitted to 2.25L diesel Series 2 and 3 models.

Where is the tank sender unit located?

The tank sender unit sits on the top face of the fuel tank, secured through a six-hole flange and sealed against the tank. On Series 2 and 3 Land Rovers the fuel tank is typically mounted beneath the front seat, so access usually means lifting the seat base.

Does this sender come with a gasket, and should the gasket be reused?

This sender comes with a new flange gasket supplied with the unit, sealing the six-hole flange against the tank top. The gasket is typically a single-use seal, so fit the supplied one rather than reusing the old gasket to avoid fuel vapour leaks around the flange.

What are the signs the fuel tank sender needs replacing?

A failing tank sender typically shows as an inaccurate or stuck fuel gauge, a gauge reading empty with fuel in the tank, or an erratic needle. The float and resistance track wear over time. Replacing the sender restores correct gauge readings on Series 2 and 3 models.
