242127 - U-Bolt – Rear – 88"

- €5,30

€5,30

€5,30 - €5,30

€5,30

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

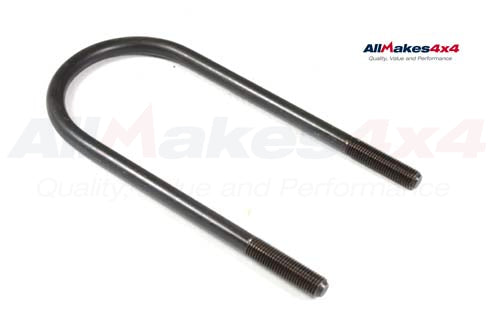

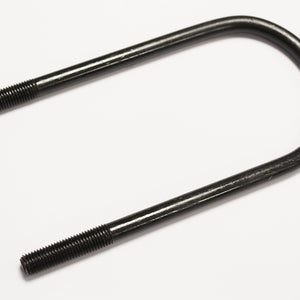

U-Bolt - a rear leaf-spring axle clamp.

It passes around the axle tube and clamps the rear leaf spring to the axle seat via the lower spring plate, locating the axle and holding it against the spring under load. Fitted as a matched set with retaining nuts.

Vehicle Model Land Rover Series 1
Land Rover Series 2 and 3

Fitment Notes SERIES I/II/IIA/III — Rear U-bolt 88", up to suffix C

Alternative Codes

242127242127ES2307322421278526810531081BSC 105

In stock 12 units

7 · Gouda 5 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 242127 U-bolt used for on a Series Land Rover?

The 242127 is a rear leaf-spring U-bolt for the Land Rover Series I, II, IIA and III 88-inch wheelbase. It passes around the rear axle tube and clamps the axle against the leaf spring pack via the lower retaining plate, locating the axle and preventing lateral movement under load.

How many U-bolts are typically needed for a rear spring repair?

A rear spring repair typically uses two U-bolts per axle end, one each side of the centre spring clamp. Order two of the 242127 for one corner. Replacing both rear corners at the same time usually takes four bolts in total.

Does the 242127 fit all Series Land Rovers, or only specific chassis numbers?

The 242127 fits Series I, II, IIA and III 88-inch wheelbase models, but only up to suffix C chassis. It doesn't cover later suffix builds or the 109-inch wheelbase, which use a longer U-bolt. Check your chassis suffix before ordering.

Can these U-bolts be reused after the spring or axle has been removed?

U-bolts are typically single-use. Torquing them to specification stretches the shank slightly, reducing clamping reliability on a second fit. On rear suspension where they carry the full axle load, replacement at every spring or axle removal is standard practice.
