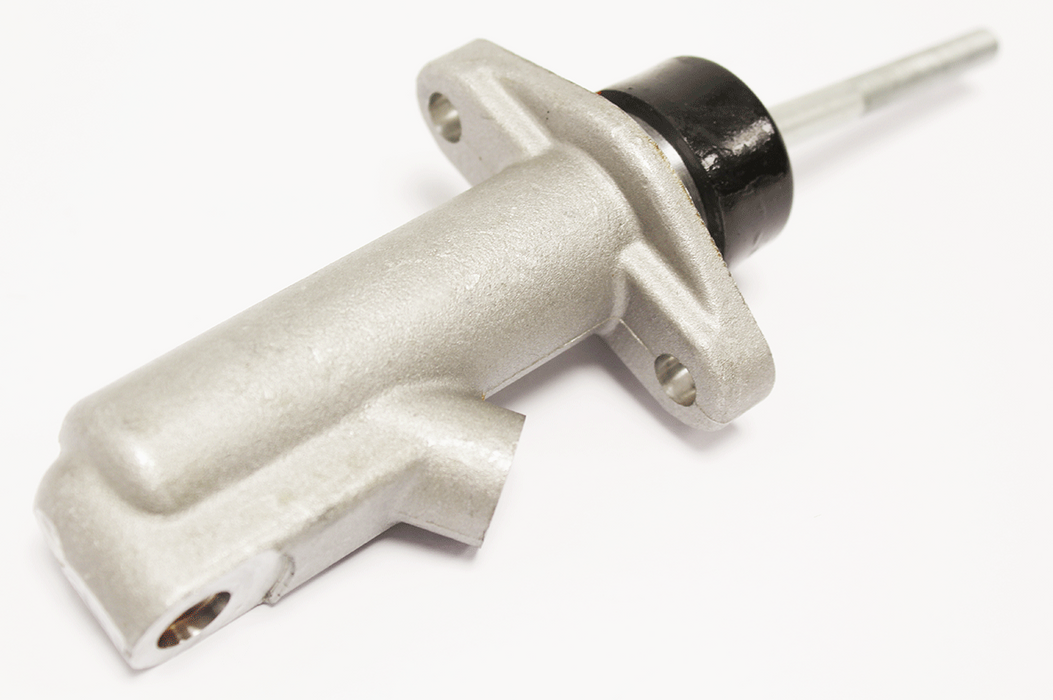

90569126G - Brake & Clutch Master Cylinder – SWB

- €82,30

€82,30

€82,30 - €82,30

€82,30

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand TRW

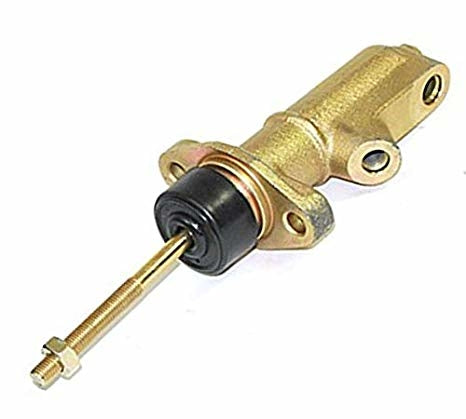

Brake & Clutch Master Cylinder - Combined CV-Type serves both the braking and clutch hydraulic circuits from a single unit.

In this CV-type design a single cast body houses both master cylinders. The brake section operates a single-circuit, non-servo braking system, while the clutch section draws from a remote reservoir and feeds the hydraulic clutch release mechanism.

Vehicle Model Land Rover Defender up to 2016
Land Rover Series 2 and 3

Fitment Notes SERIES II/IIA — 88" SWB, CV-type (brake and clutch combined)
SERIES III — 88" SWB, non-servo to June 1980

Alternative Codes

90569126G9056912690569126TRW27484156912664677681BR 2226PMD350

In stock 1 unit

1 · Gouda 0 · Drachten

Express delivery available

2 more on the way · ETA 21-07-2026

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

2 more units on the way — expected 21-07-2026. Orders beyond current stock are reserved from incoming stock and shipped as soon as they arrive.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 90569126G brake and clutch master cylinder used for?

The 90569126G is a combined CV-type master cylinder that runs both the brake and clutch hydraulic circuits from one cast body. The brake section feeds a single-circuit, non-servo braking system, while the clutch section draws from a remote reservoir to operate the hydraulic clutch release. Fitted to Series II/IIA and Series III 88" SWB.

Which Land Rovers does this combined master cylinder fit?

This combined master cylinder fits the Series II and IIA 88" SWB with the CV-type setup, and the Series III 88" SWB non-servo up to June 1980. The SWB refers to the 88-inch short-wheelbase chassis. Confirm your vehicle has the single combined brake-and-clutch unit before ordering.

How do I know if I need this combined unit or a separate brake cylinder?

Check whether your 88" SWB Series uses one combined brake-and-clutch master cylinder or two separate units. This CV-type part serves both circuits from a single body and is found on Series II/IIA and early Series III 88" up to June 1980. Inspect the cylinder currently fitted before ordering.

What are the signs this master cylinder needs replacing?

A failing brake or clutch master cylinder typically shows a sinking pedal, loss of hydraulic pressure, or fluid leaking from the body or reservoir. On these single-circuit Series brakes a master cylinder failure can leave you without braking, so replace it promptly if the pedal feels spongy or drops to the floor.
