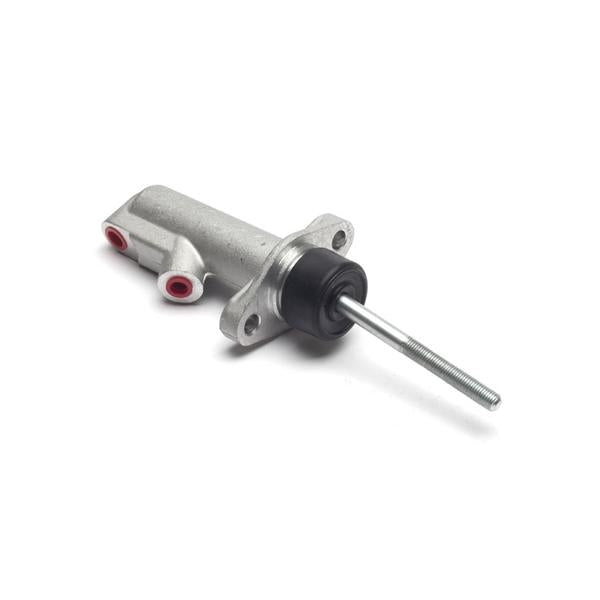

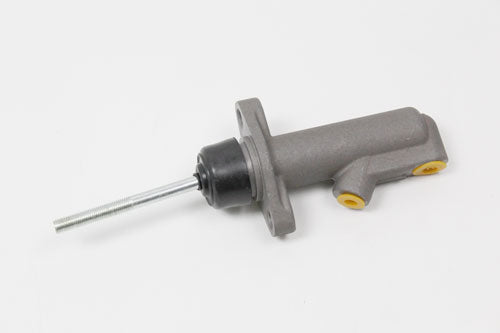

90569126 - Brake & Clutch Master Cylinder – SWB

- €24,40

€24,40

€24,40 - €24,40

€24,40

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Brake & Clutch Master Cylinder - Combined CV-Type serves both the braking and clutch hydraulic circuits from a single unit.

In this CV-type design a single cast body houses both master cylinders. The brake section operates a single-circuit, non-servo braking system, while the clutch section draws from a remote reservoir and feeds the hydraulic clutch release mechanism.

Vehicle Model Land Rover Defender up to 2016
Land Rover Series 2 and 3

Fitment Notes SERIES II/IIA — 88" SWB, CV-type (brake and clutch combined)
SERIES III — 88" SWB, non-servo to June 1980

Alternative Codes

9056912690569126ES27484156912664677681BR 2226PMD350

In stock 15 units

12 · Gouda 3 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the Brake/Clutch Master Cylinder 90569126 used for on a Series Land Rover?

The 90569126 is a CV-type combined master cylinder that houses both the brake and clutch master cylinders in a single body. The brake section operates the single-circuit braking system without a servo; the clutch section has a remote reservoir and drives the hydraulic clutch release. It fits Series II/IIA 88" SWB and Series III 88" SWB non-servo models to June 1980.

What are the symptoms of a failing combined master cylinder on a Series?

A failing master cylinder typically shows as a sinking or spongy clutch or brake pedal, fluid contamination between the brake and clutch circuits if internal seals have broken down, or external fluid leaks from the reservoir or body. On older Series vehicles, internal bore corrosion is a common cause of seal failure.

Does this master cylinder suit all Series III 88" models?

No. On Series III 88" models, the 90569126 fits non-servo configurations up to June 1980 only. Series III models from July 1980 onwards may have a different master cylinder arrangement. Cross-references include BR 2226, 569126, and PMD350. Confirm your production date before ordering.

Is this the same part as 569126?

Yes. Part 569126 is listed as a cross-reference for 90569126. The 90- prefix is a later catalogue revision of the same part number. Other equivalents include BR 2226, 274841, 64677681, and PMD350.
