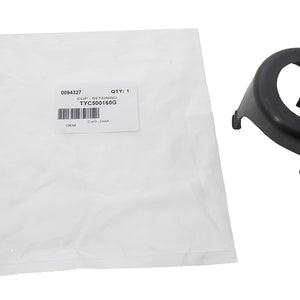

TYC500160 - Retaining Clip

- €6,40

€6,40

€6,40 - €6,40

€6,40

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Retaining Clip for the output shaft oil seal on the MT82 6-speed manual gearbox fitted to the Defender from VIN 7A000001 (2007 onwards).

This clip locates and secures the output shaft oil seal within the gearbox housing, preventing axial displacement of the seal under operating loads.

Vehicle Model Land Rover Defender up to 2016

Fitment Notes DEFENDER 2007-2016 — Manual transaxle retaining clip, from VIN 7A000001

Alternative Codes

TYC500160TYC500160LR

In stock 19 units

18 · Gouda 1 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the TYC500160 retaining clip used for?

The TYC500160 retaining clip locates and secures the output shaft oil seal inside the MT82 6-speed manual gearbox housing, stopping the seal moving under operating loads. It's fitted to the Land Rover Defender 2007-2016 with the MT82 transmission, from VIN 7A000001.

How many retaining clips do I need for an output shaft seal job?

Typically one retaining clip is needed per output shaft seal replacement on the MT82 gearbox, and it's sold individually. It's good practice to fit a fresh clip whenever the seal is renewed, since a distorted clip won't hold the new seal securely.

Which oil seal does this clip retain?

This clip retains the MT82 output shaft oil seal, part TZB500140. The two are normally replaced together, as a new seal fitted without a sound retaining clip can back out of its bore. Both parts fit the Land Rover Defender 2007-2016 MT82 gearbox.
