GA3181 - Swivel Housing Kit – Non-V8

- €350,00

€350,00

€350,00 - €350,00

€350,00

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

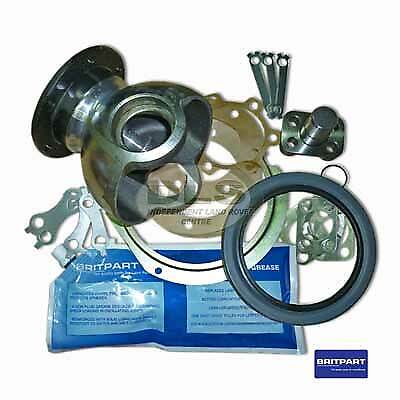

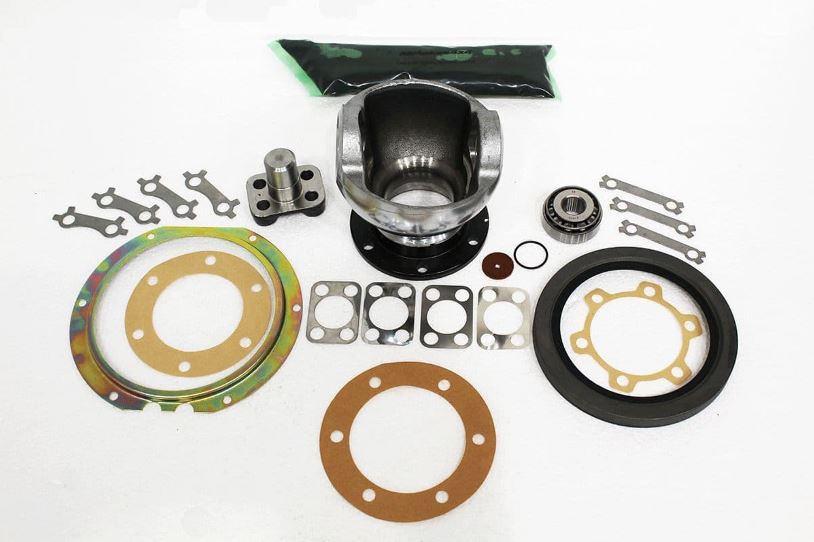

Swivel Housing Kit for the front axle swivel assembly, covering one side of the axle. This is the later configuration, with the steering arm mounted at the bottom of the swivel.

It rebuilds the swivel joint where the hub carrier pivots on the axle casing, restoring steering articulation and sealing the swivel unit. The kit includes the swivel housing, swivel pin, Railko bush, thrust washer, swivel pin bearing, O-ring, lock washer, locker, shims, oil seal and retainer, joint washers, and a sachet of swivel housing grease.

For a kit containing only the wear components, without the swivel housing, see GA3181P.

Vehicle Model Land Rover Series 2 and 3

Fitment Notes SERIES IIA/III — Swivel Kit (complete, with housing), all except V8 (Stage 1 V8)

Alternative Codes

GA3181DA3181SHK3181

In stock 4 units

3 · Gouda 1 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the swivel housing kit (GA3181) for?

The GA3181 swivel housing kit rebuilds one side of the front axle swivel on the Series IIA and III. It includes the swivel housing, swivel pin, Railko bush, thrust washer, bearing, O-ring, lock washer, shims, oil seal and retainer, joint washers and grease.

Does one GA3181 kit do both sides?

No, one GA3181 kit covers a single side of the front axle. A full both-sides swivel rebuild typically needs two kits, so check whether you're overhauling one side or both before ordering.

Which Series models does this kit fit?

This kit fits the Land Rover Series IIA and III, all variants except the V8 (Stage 1 V8). It's the later configuration with the steering arm mounted at the bottom of the swivel, so confirm your setup before ordering.

What's the difference between GA3181 and GA3181P?

GA3181 is the complete kit and includes the swivel housing. GA3181P is the repair kit with only the wear components and no housing. Choose GA3181 if the swivel ball is worn, and GA3181P if your existing housing is still serviceable.
